SKU: CNB-28

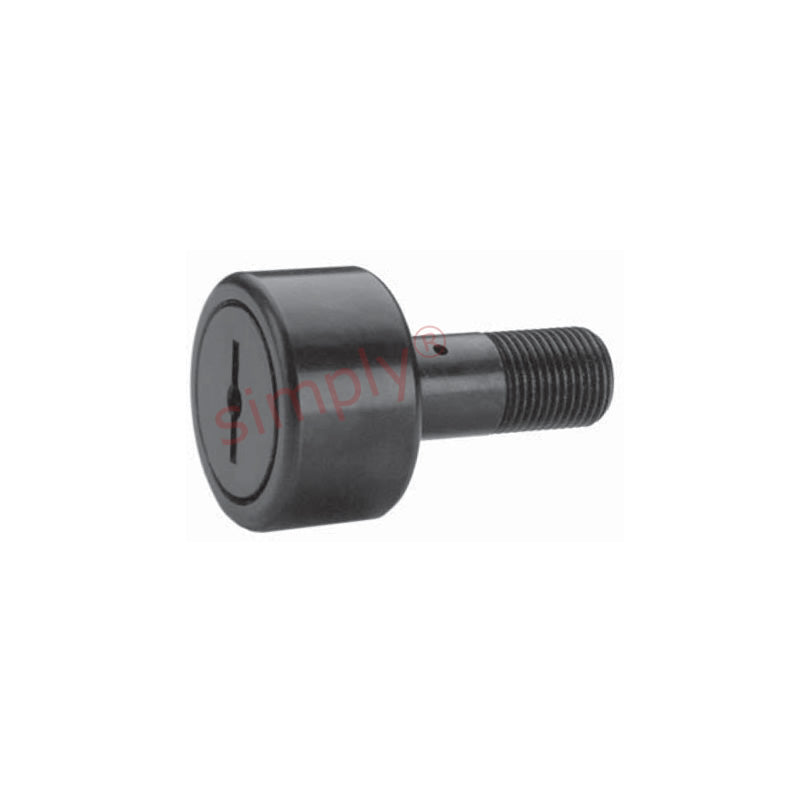

Major Brand CNB28 Slotted Cylindrical Cam Follower 7/8 inch Outside Diameter

Name: Major Brand CNB28 Slotted Cylindrical Cam Follower 7/8 inch Outside Diameter
Brand: Major Brand
SKU: CNB-28
Price: 33.88 USD
Availability: InStock

$33.88 ex VAT

Sale Sold out

Equivalent to: CF-7/8 S-28 CR-7/8 CR-14

In stock

Price Break

3+ $22.70

4+ $21.42

9+ $21.17

19+ $20.91

29+ $20.66

39+ $20.40

49+ $19.13

59+ $18.87

249+ $18.62

499+ $18.36

999+ $17.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Outside Diameter:: 22.23mm = 0.875 (7/8) inch
Width:: 12.7mm = 0.5 (1/2) inch
Pitch:: UNF 3/8-24

Technical

A	0.875 inch
B	0.5 inch
C	0.375 inch
D	0.875 inch
E	0.375 inch
Thread class 2A F	3/8-24 UNF
G	1/4 inch
H	3/32 inch
J	3/16 inch
Min boss diameter	1/2 inch
Recommended bore	0.375 inch
Recommended torque	95 lbf-in
Max static capacity	2065 lbs
Basic dynamic rating	1660 lbs
