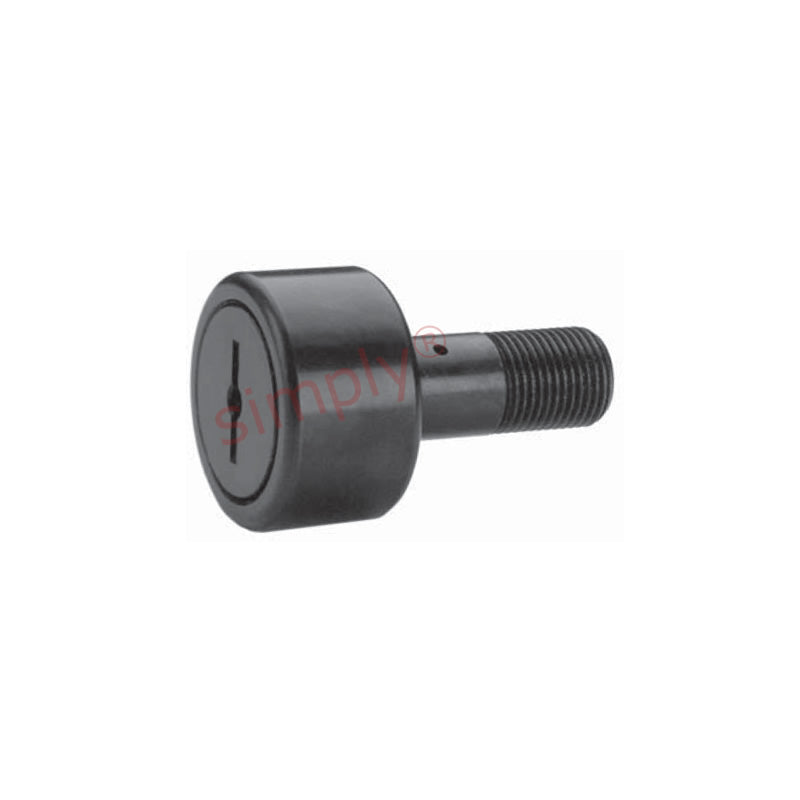

• Major Brand CNB32 Slotted Cylindrical Cam Follower 1 inch Outside Diameter
1 1

SKU: CNB-32

Major Brand CNB32 Slotted Cylindrical Cam Follower 1 inch Outside Diameter

Major Brand CNB32 Slotted Cylindrical Cam Follower 1 inch Outside Diameter
$40.66 ex VAT
$40.66 ex VAT
Sale Sold out

Equivalent to: CF-1 S-32 CR-1 CR-16

In stock

Price Break
3+ $27.23
4+ $25.70
9+ $25.40
19+ $25.09
29+ $24.79
39+ $24.48
49+ $22.95
59+ $22.64
249+ $22.34
499+ $22.03
999+ $21.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
25.4mm = 1 inch
Width:
15.88mm = 0.625 (5/8) inch
Pitch:
UNF 7/16-20
Technical
A 1 inch
B 0.625 inch
C 0.4375 inch
D 1 inch
E 0.5 inch
Thread class 2A F 7/16-20 UNF
G 1/4 inch
H 3/32 inch
J 3/16 inch
Min boss diameter 41/64 inch
Recommended bore 0.4375 inch
Recommended torque 250 lbf-in
Max static capacity 3060 lbs
Basic dynamic rating 2225 lbs
