SKU: CNB-32-S

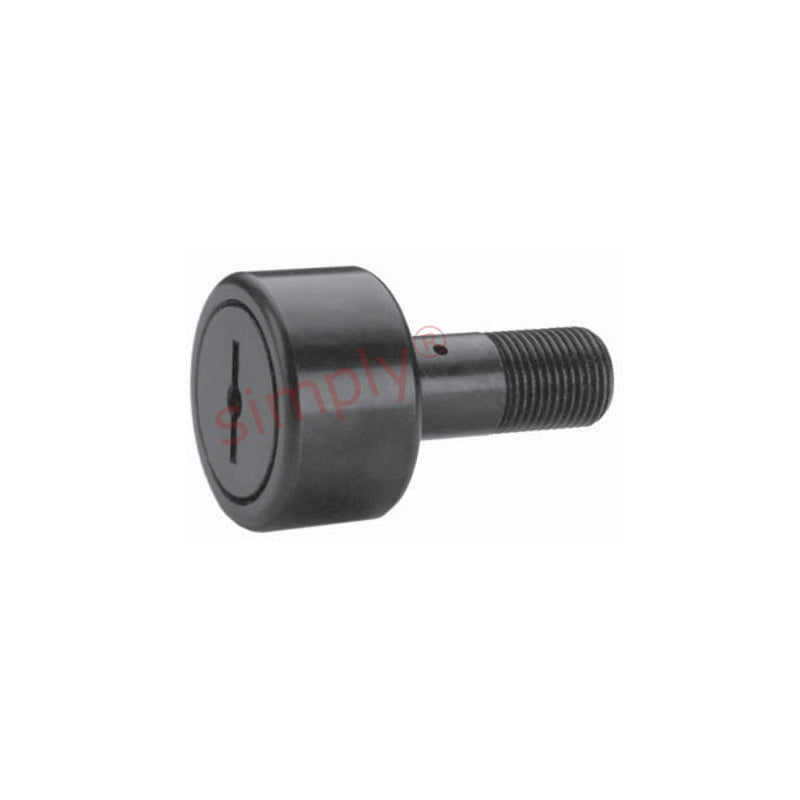

Major Brand CNB32S Sealed and Slotted Cylindrical Cam Follower 1 inch Outside Diameter
- Regular price
- $48.01 ex VAT
- Sale price
- $48.01
- Regular price
-
In stock
Quantity Price Breaks
3
$42.73
4
$40.33
9
$39.85
19
$39.37
29
$38.89
39
$38.41
49
$36.01
59
$35.53
249
$35.05
499
$34.57
999
$33.61
SKU:
CNB-32-S
Major Brand CNB32S Sealed and Slotted Cylindrical Cam Follower 1 inch Outside Diameter
- Regular price
- $48.01 ex VAT
- Sale price
- $48.01
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 1 inch |
| B | = | 0.625 inch |
| C | = | 0.4375 inch |
| D | = | 1 inch |
| E | = | 0.5 inch |
| Thread class 2A F | = | 7/16-20 UNF |
| G | = | 1/4 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 41/64 inch |
| Recommended bore | = | 0.4375 inch |
| Recommended torque | = | 250 lbf-in |
| Max static capacity | = | 3060 lbs |
| Basic dynamic rating | = | 2225 lbs |
Downloads
Reviews
