• Major Brand CNB40 Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter
1 1

SKU: CNB-40

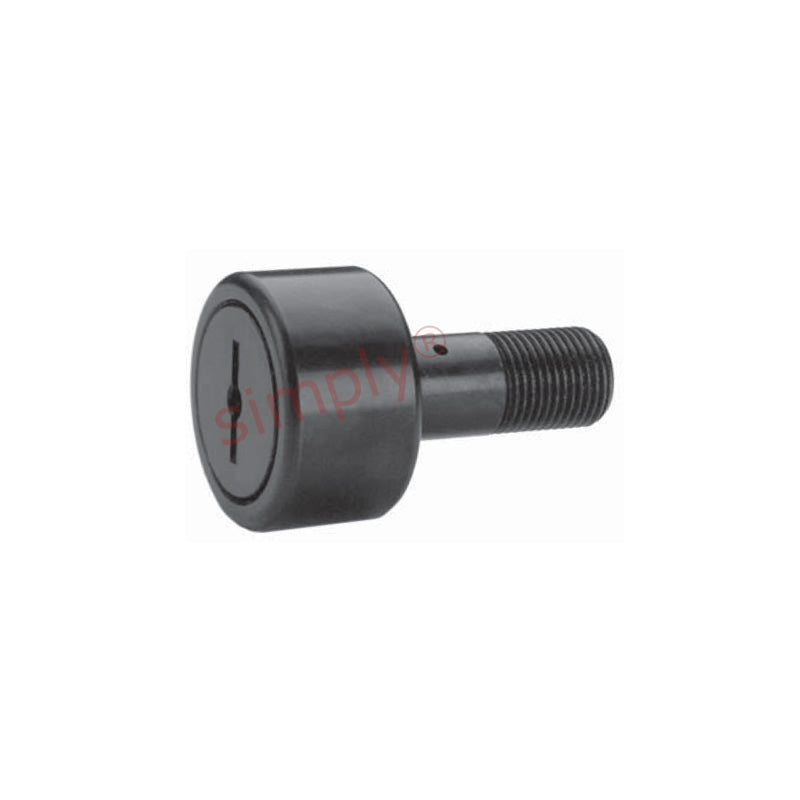

Major Brand CNB40 Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter

Major Brand CNB40 Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter
$60.99 ex VAT
$60.99 ex VAT
Sale Sold out

Equivalent to: CF-1-1/4 S-40 CR-1-1/4 CR-20

In stock

Price Break
3+ $40.85
4+ $38.56
9+ $38.10
19+ $37.64
29+ $37.18
39+ $36.72
49+ $34.43
59+ $33.97
249+ $33.51
499+ $33.05
999+ $32.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
31.75mm = 1.25 (1-1/4) inch
Width:
19.05mm = 0.75 (3/4) inch
Pitch:
UNF 1/2-20
Technical
A 1.25 inch
B 0.75 inch
C 0.5 inch
D 1.25 inch
E 0.625 inch
Thread class 2A F 1/2-20 UNF
G 5/16 inch
H 3/32 inch
J 3/16 inch
Min boss diameter 49/64 inch
Recommended bore 0.5 inch
Recommended torque 350 lbf-in
Max static capacity 4250 lbs
Basic dynamic rating 3930 lbs
Reviews
View full details
