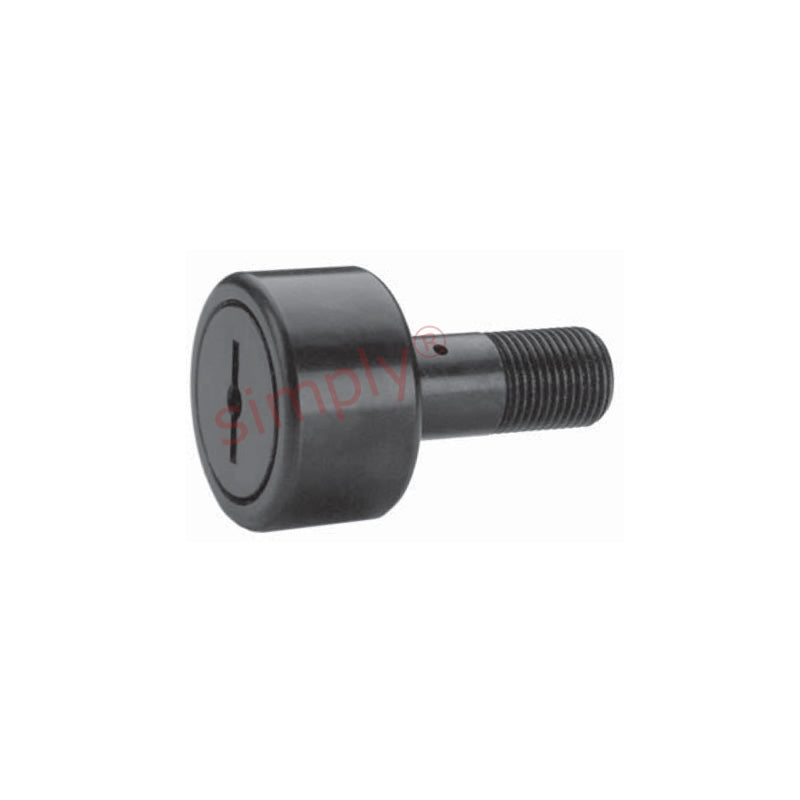

• Major Brand CNB40S Sealed and Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter
1 1

SKU: CNB-40-S

Major Brand CNB40S Sealed and Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter

Major Brand CNB40S Sealed and Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter
$57.94 ex VAT
$57.94 ex VAT
Sale Sold out

Equivalent to: CF-1-1/4-S S-40-L CR-1-1/4-X CRS-20

In stock

Price Break
3+ $38.81
4+ $36.63
9+ $36.19
19+ $35.76
29+ $35.32
39+ $34.88
49+ $32.70
59+ $32.27
249+ $31.83
499+ $31.40
999+ $30.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
31.75mm = 1.25 (1-1/4) inch
Width:
19.05mm = 0.75 (3/4) inch
Pitch:
UNF 1/2-20
Technical
A 1.25 inch
B 0.75 inch
C 0.5 inch
D 1.25 inch
E 0.625 inch
Thread class 2A F 1/2-20 UNF
G 5/16 inch
H 3/32 inch
J 3/16 inch
Min boss diameter 49/64 inch
Recommended bore 0.5 inch
Recommended torque 350 lbf-in
Max static capacity 4250 lbs
Basic dynamic rating 3930 lbs
