SKU: CNB-48
Major Brand CNB48 Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
- Regular price
- $58.64 ex VAT
- Sale price
- $58.64
- Regular price
-
In stock
Quantity Price Breaks
3
$52.19
4
$49.26
9
$48.67
19
$48.08
29
$47.50
39
$46.91
49
$43.98
59
$43.39
249
$42.81
499
$42.22
999
$41.05
SKU:
CNB-48
Major Brand CNB48 Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
- Regular price
- $58.64 ex VAT
- Sale price
- $58.64
- Regular price
-
Description
|

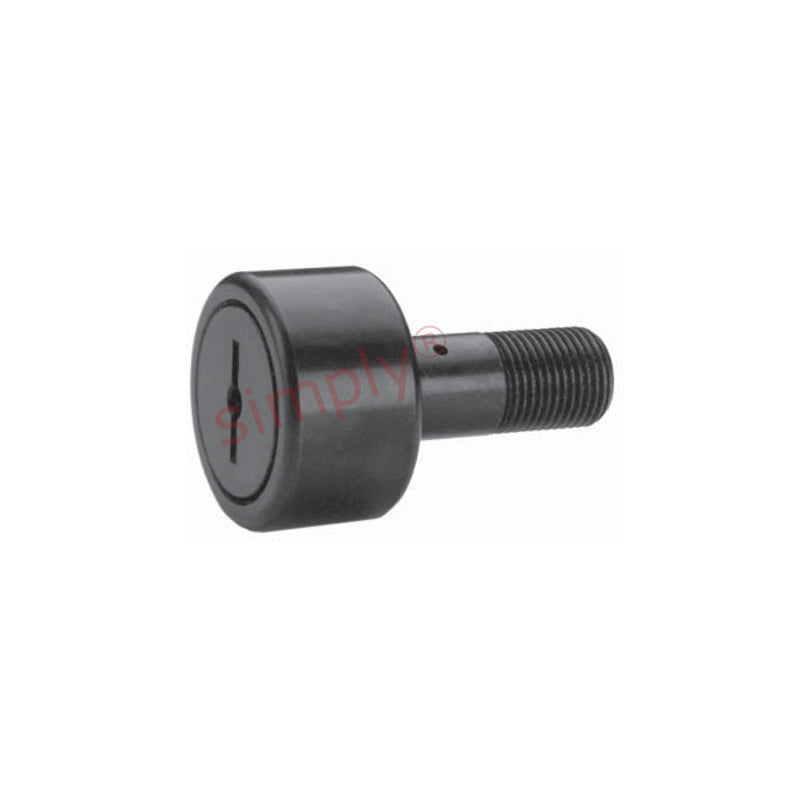

Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 1.5 inch |
| B | = | 0.875 inch |
| C | = | 0.625 inch |
| D | = | 1.5 inch |
| E | = | 0.75 inch |
| Thread class 2A F | = | 5/8-18 UNF |
| G | = | 3/8 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 57/64 inch |
| Recommended bore | = | 0.625 inch |
| Recommended torque | = | 650 lbf-in |
| Max static capacity | = | 5640 lbs |
| Basic dynamic rating | = | 4840 lbs |
