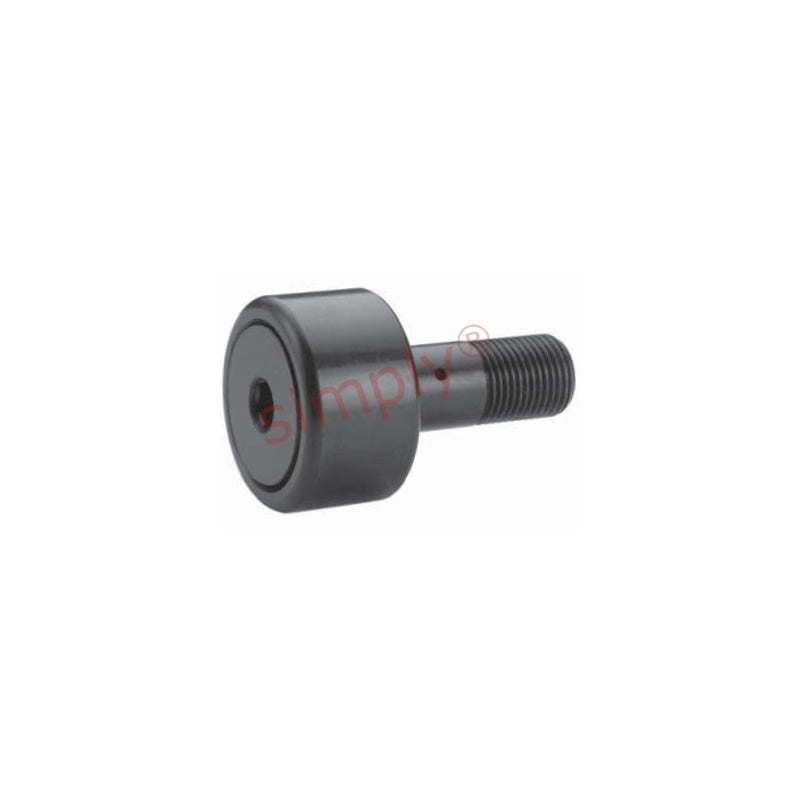

• Major Brand CNB48SB Hex Head Sealed Cylindrical Cam Follower 1-1/2 inch Outside Diameter
1 1

SKU: CNB-48-SB

Major Brand CNB48SB Hex Head Sealed Cylindrical Cam Follower 1-1/2 inch Outside Diameter

Major Brand CNB48SB Hex Head Sealed Cylindrical Cam Follower 1-1/2 inch Outside Diameter
$83.85 ex VAT
$83.85 ex VAT
Sale Sold out

Equivalent to: CF-1-1/2-SB S-48-LW CR-1-1/2-XB CRSB-24 CR24VBUU

In stock

Price Break
3+ $56.17
4+ $53.01
9+ $52.38
19+ $51.75
29+ $51.12
39+ $50.49
49+ $47.33
59+ $46.70
249+ $46.07
499+ $45.44
999+ $44.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
38.1mm = 1.5 (1-1/2) inch
Width:
22.23mm = 0.875 (7/8) inch
Pitch:
UNF 5/8-18
Technical
A 1.5 inch
B 0.875 inch
C 0.625 inch
D 1.5 inch
E 0.75 inch
Thread class 2A F 5/8-18 UNF
G 3/8 inch
H 3/32 inch
J 3/16 inch
Min boss diameter 57/64 inch
Recommended bore 0.625 inch
Recommended torque 650 lbf-in
Max static capacity 5640 lbs
Basic dynamic rating 4840 lbs
