• Major Brand CNB56 Slotted Cylindrical Cam Follower 1-3/4 inch Outside Diameter
1 1

SKU: CNB-56

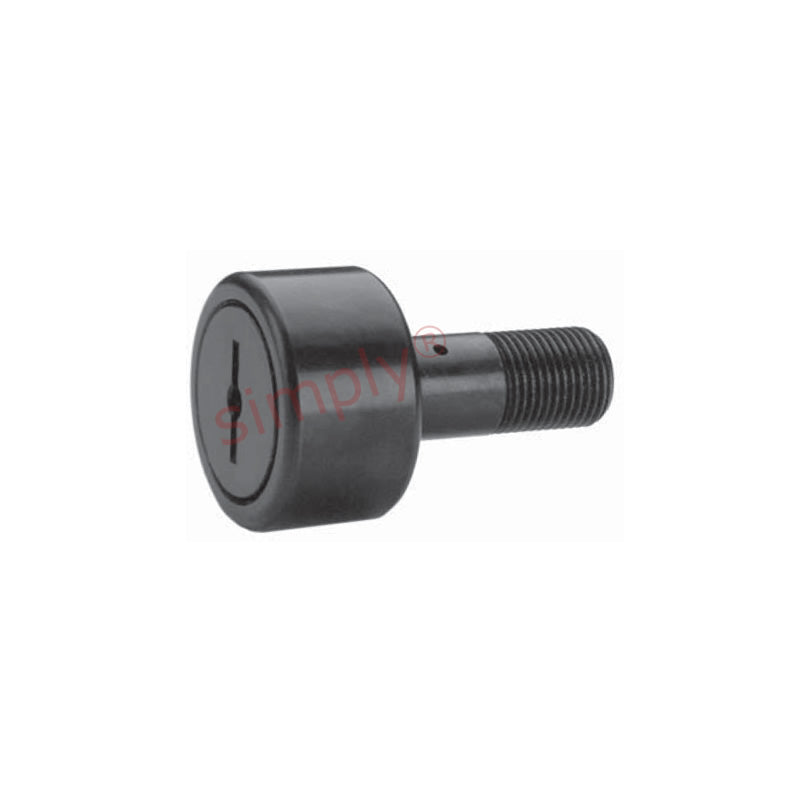

Major Brand CNB56 Slotted Cylindrical Cam Follower 1-3/4 inch Outside Diameter

Major Brand CNB56 Slotted Cylindrical Cam Follower 1-3/4 inch Outside Diameter
$76.24 ex VAT
$76.24 ex VAT
Sale Sold out

Equivalent to: CF-1-3/4 S-56 CR-1-3/4 CR-28

In stock

Price Break
3+ $51.06
4+ $48.20
9+ $47.62
19+ $47.05
29+ $46.47
39+ $45.90
49+ $43.03
59+ $42.46
249+ $41.88
499+ $41.31
999+ $40.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
44.45mm = 1.75 (1-3/4) inch
Width:
25.4mm = 1 inch
Pitch:
UNF 3/4-16
Technical
A 1.75 inch
B 1 inch
C 0.75 inch
D 1.75 inch
E 0.875 inch
Thread class 2A F 3/4-16 UNF
G 7/16 inch
H 3/32 inch
J 3/16 inch
Min boss diameter 13/64 inch
Recommended bore 0.75 inch
Recommended torque 1250 lbf-in
Max static capacity 7920 lbs
Basic dynamic rating 6385 lbs
