SKU: CNB-64

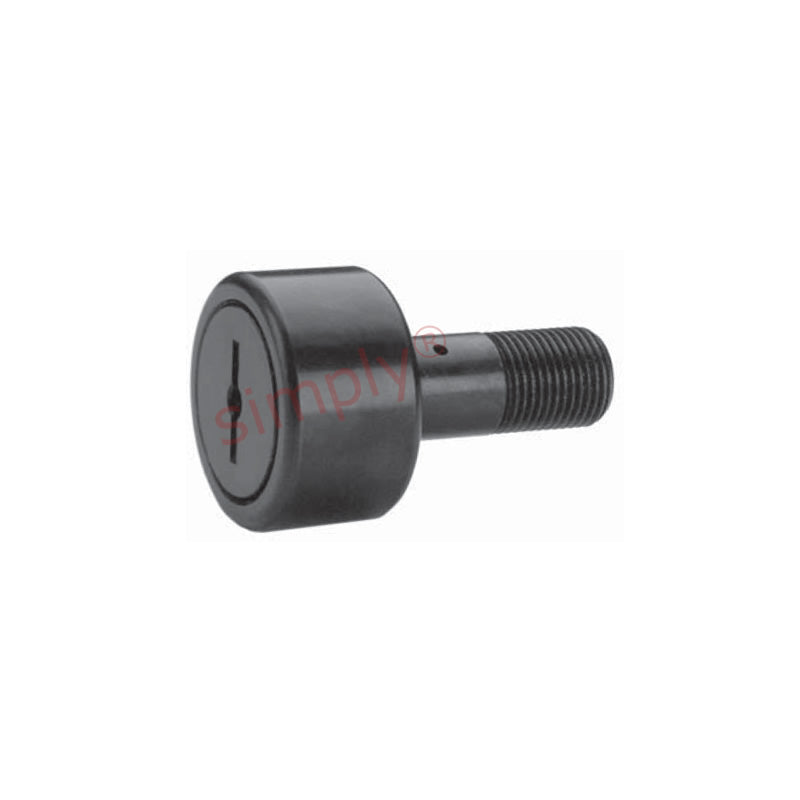

Major Brand CNB64 Slotted Cylindrical Cam Follower 2 inch Outside Diameter
- Regular price
- $93.35 ex VAT
- Sale price
- $93.35
- Regular price
-
In stock
Quantity Price Breaks
3
$83.08
4
$78.41
9
$77.48
19
$76.55
29
$75.61
39
$74.68
49
$70.01
59
$69.08
249
$68.15
499
$67.21
999
$65.35
SKU:
CNB-64
Major Brand CNB64 Slotted Cylindrical Cam Follower 2 inch Outside Diameter
- Regular price
- $93.35 ex VAT
- Sale price
- $93.35
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 2 inch |
| B | = | 1.25 inch |
| C | = | 0.875 inch |
| D | = | 2 inch |
| E | = | 1 inch |
| Thread class 2A F | = | 7/8-14 UNF |
| G | = | 1/2 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-13/64 inch |
| Recommended bore | = | 0.875 inch |
| Recommended torque | = | 1500 lbf-in |
| Max static capacity | = | 10570 lbs |
| Basic dynamic rating | = | 8090 lbs |
