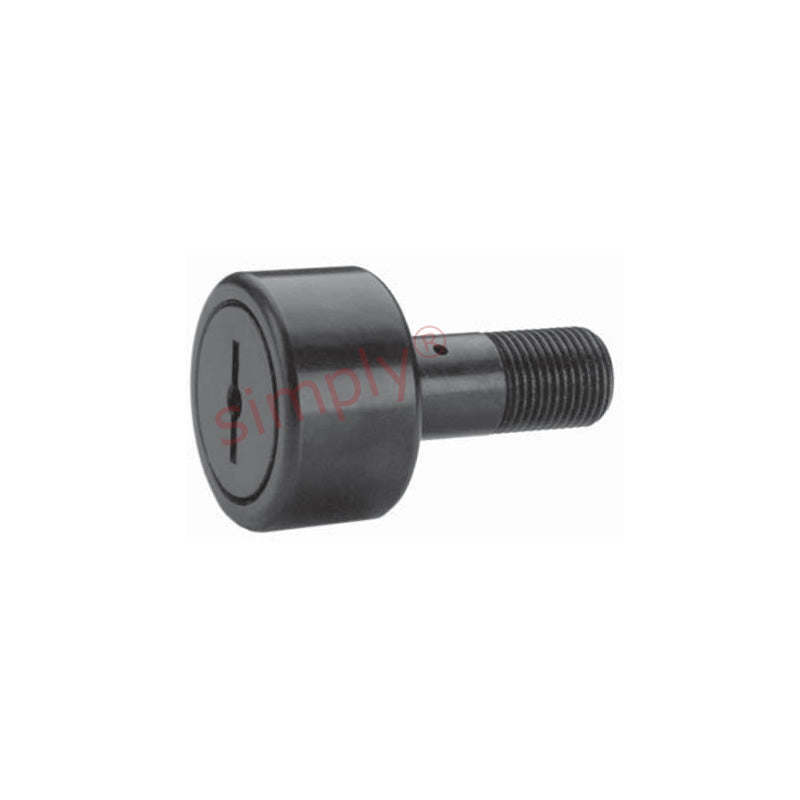

• Major Brand CNB64S Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter
1 1

SKU: CNB-64-S

Major Brand CNB64S Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter

Major Brand CNB64S Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter
$109.02 ex VAT
$109.02 ex VAT
Sale Sold out

Equivalent to: CF-2-S S-64-L CR-2-X CRS-32

In stock

Price Break
3+ $73.02
4+ $68.92
9+ $68.10
19+ $67.28
29+ $66.46
39+ $65.64
49+ $61.53
59+ $60.71
249+ $59.89
499+ $59.07
999+ $57.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication.
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
50.8mm = 2 inch
Width:
31.75mm = 1.25 (1-1/4) inch
Pitch:
UNF 7/8-14
Technical
A 2 inch
B 1.25 inch
C 0.875 inch
D 2 inch
E 1 inch
Thread class 2A F 7/8-14 UNF
G 1/2 inch
H 1/8 inch
J 3/16 inch
Min boss diameter 1-13/64 inch
Recommended bore 0.875 inch
Recommended torque 1500 lbf-in
Max static capacity 10570 lbs
Basic dynamic rating 8090 lbs
