• Major Brand CNB80S Sealed and Slotted Cylindrical Cam Follower 2-1/2 inch Outside Diameter
1 1

SKU: CNB-80-S

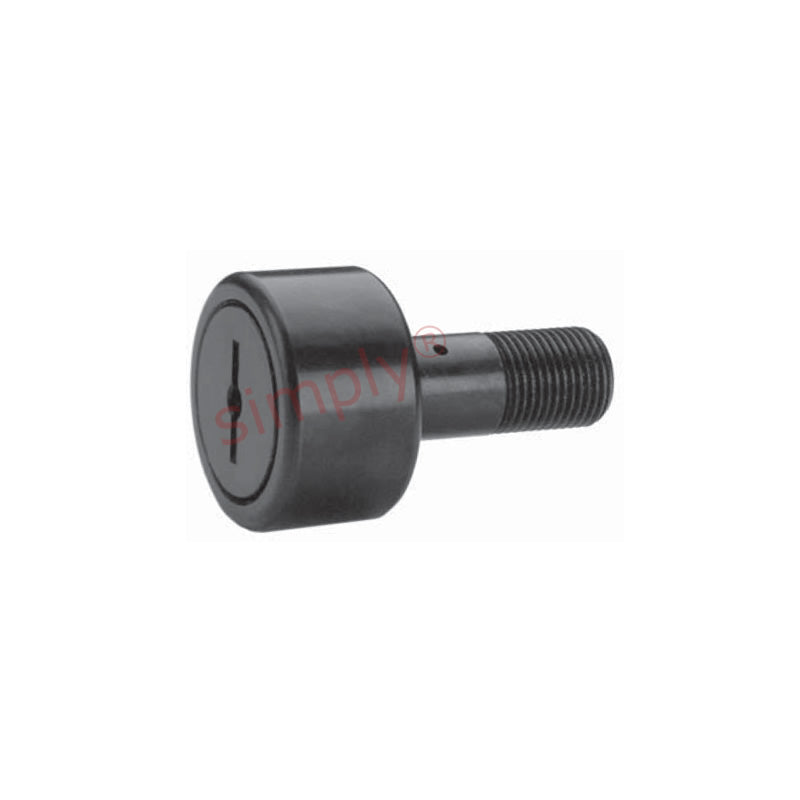

Major Brand CNB80S Sealed and Slotted Cylindrical Cam Follower 2-1/2 inch Outside Diameter

Major Brand CNB80S Sealed and Slotted Cylindrical Cam Follower 2-1/2 inch Outside Diameter
$132.14 ex VAT
$132.14 ex VAT
Sale Sold out

Equivalent to: CF-2-1/2-S S-80-L CR-2-1/2-X CRS-40

In stock

Price Break
3+ $88.51
4+ $83.54
9+ $82.54
19+ $81.55
29+ $80.55
39+ $79.56
49+ $74.59
59+ $73.59
249+ $72.60
499+ $71.60
999+ $69.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication.
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
63.5mm = 2.5 (2-1/2) inch
Width:
38.1mm = 1.5 (1-1/2) inch
Pitch:
UNF 1-14
Technical
A 2.5 inch
B 1.5 inch
C 1 inch
D 2.25 inch
E 1.125 inch
Thread class 2A F 1-14 UNS
G 9/16 inch
H 1/8 inch
J 3/16 inch
Min boss diameter 15/16 inch
Recommended bore 1 inch
Recommended torque 2250 lbf-in
Max static capacity 16450 lbs
Basic dynamic rating 11720 lbs
