• Major Brand CNBE24SB Hex Head Sealed Cylindrical Cam Follower with Eccentric Stud 3/4 inch Outside Diameter
1 1

SKU: CNBE-24-SB

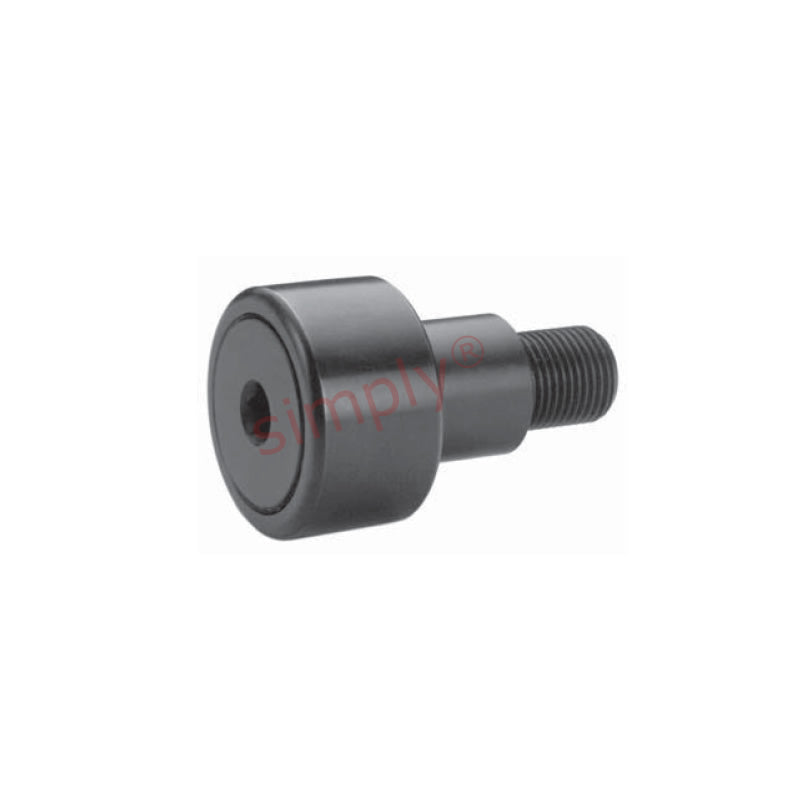

Major Brand CNBE24SB Hex Head Sealed Cylindrical Cam Follower with Eccentric Stud 3/4 inch Outside Diameter

Major Brand CNBE24SB Hex Head Sealed Cylindrical Cam Follower with Eccentric Stud 3/4 inch Outside Diameter
$61.16 ex VAT
$61.16 ex VAT
Sale Sold out

Equivalent to: CFE-3/4-SB S-24-LWX CR-3/4-XBE CRSBE-12

In stock

Price Break
3+ $40.96
4+ $38.66
9+ $38.20
19+ $37.74
29+ $37.28
39+ $36.82
49+ $34.52
59+ $34.06
249+ $33.60
499+ $33.14
999+ $32.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
19.05mm = 0.75 (3/4) inch
Width:
12.7mm = 0.5 (1/2) inch
Pitch:
UNF 3/8-24
Technical
A 0.75 inch
B 0.5 inch
C 0.5 inch
D 0.5 inch
E 0.875 inch
F 0.375 inch
Thread class 2A G 3/8-24 UNF
H 3/16 inch
Min boss diameter 1/2 inch
Recommended torque 95 lbf-in
Max static capacity 2065 lbs
Basic dynamic rating 1660 lbs
