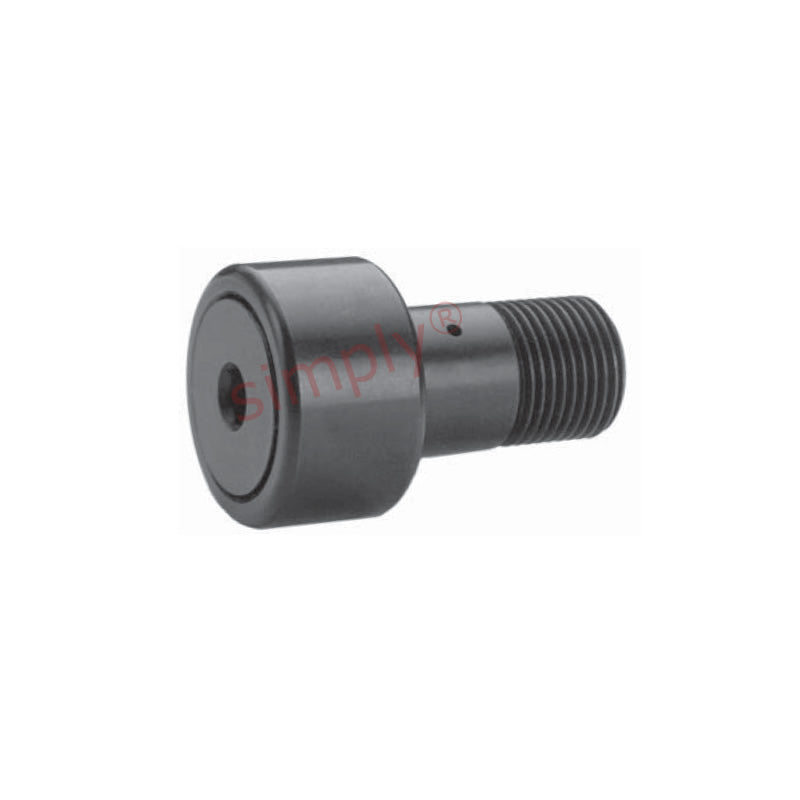

• Major Brand CNBH16SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter
1 1

SKU: CNBH-16-SB

Major Brand CNBH16SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter

Major Brand CNBH16SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter
$47.43 ex VAT
$47.43 ex VAT
Sale Sold out

Equivalent to: CFH-1/2-SB H-16-LW HR-1/2-XB CRHSB-8-1 CRH8-1VBUU

In stock

Price Break
3+ $31.77
4+ $29.99
9+ $29.63
19+ $29.27
29+ $28.92
39+ $28.56
49+ $26.78
59+ $26.42
249+ $26.06
499+ $25.70
999+ $24.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench.
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
12.7mm = 0.5 (1/2) inch
Width:
9.53mm = 0.375 (3/8) inch
Pitch:
UNF 1/4-28
Technical
A 0.5 inch
B 0.375 inch
C 0.25 inch
D 0.625 inch
E 0.25 inch
Thread class 2A F 1/4-28 UNF
J 1/8 inch
Min boss diameter 13/32 inch
Recommended bore 0.25 inch
Recommended torque 35 lbf-in
Max static capacity 1580 lbs
Basic dynamic rating 680 lbs
