SKU: CNBH-36-SB-IKO

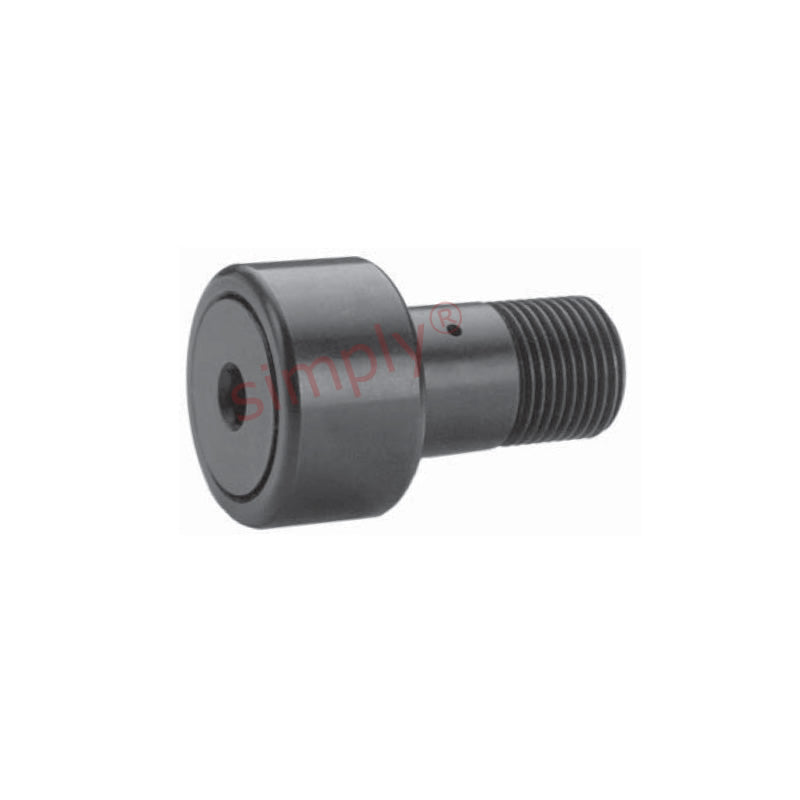

IKO CNBH36SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1-1/8 inch Outside Diameter
IKO CNBH36SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1-1/8 inch Outside Diameter
Out of stock
Description
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Pitch:
- UNF 5/8-18
Technical
Technical
| A | 1.125 inch |
|---|---|
| B | 0.625 inch |
| C | 0.625 inch |
| D | 1 inch |
| E | 0.5 inch |
| Thread class 2A F | 5/8-18 UNF |
| G | 1/4 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 25/32 inch |
| Recommended bore | 0.625 inch |
| Recommended torque | 650 lbf-in |
| Max static capacity | 6120 lbs |
| Basic dynamic rating | 2225 lbs |
