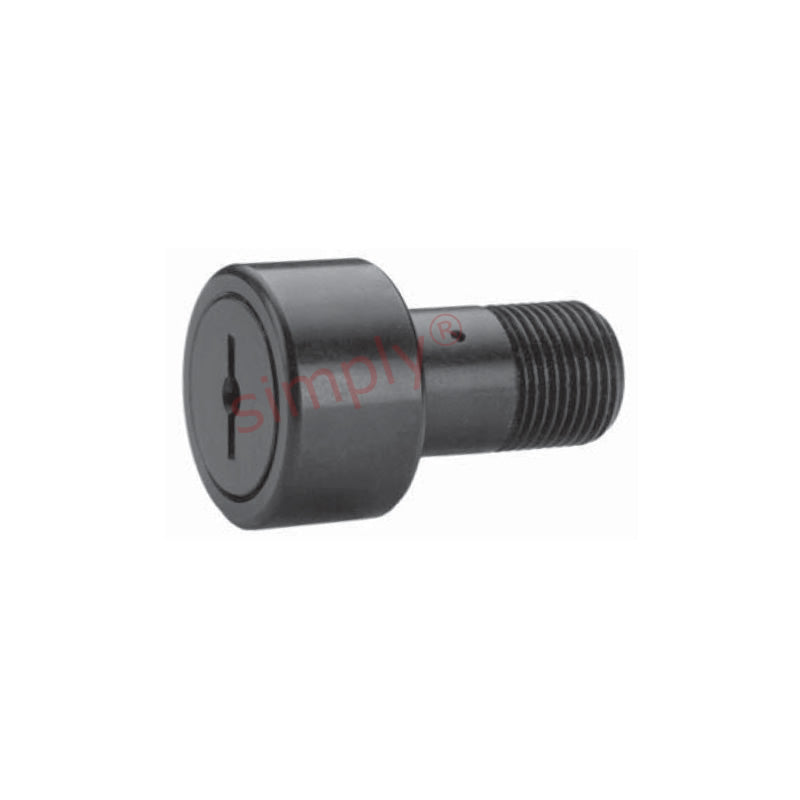

• Major Brand CNBH48S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
1 1

SKU: CNBH-48-S

Major Brand CNBH48S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter

Major Brand CNBH48S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
$70.14 ex VAT
$70.14 ex VAT
Sale Sold out

Equivalent to: CFH-1-1/2-S H-48-L HR-1-1/2-X CRSH-24

In stock

Price Break
3+ $46.98
4+ $44.34
9+ $43.81
19+ $43.28
29+ $42.76
39+ $42.23
49+ $39.59
59+ $39.06
249+ $38.53
499+ $38.01
999+ $36.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
38.1mm = 1.5 (1-1/2) inch
Width:
22.23mm = 0.875 (7/8) inch
Pitch:
UNF 7/8-14
Technical
A 1.5 inch
B 0.875 inch
C 0.875 inch
D 1.5 inch
E 0.75 inch
Thread class 2A F 7/8-14 UNF
G 3/8 inch
H 3/32 inch
J 3/16 inch
Min boss diameter 13/32 inch
Recommended bore 0.875 inch
Recommended torque 1500 lbf-in
Max static capacity 11280 lbs
Basic dynamic rating 4840 lbs
