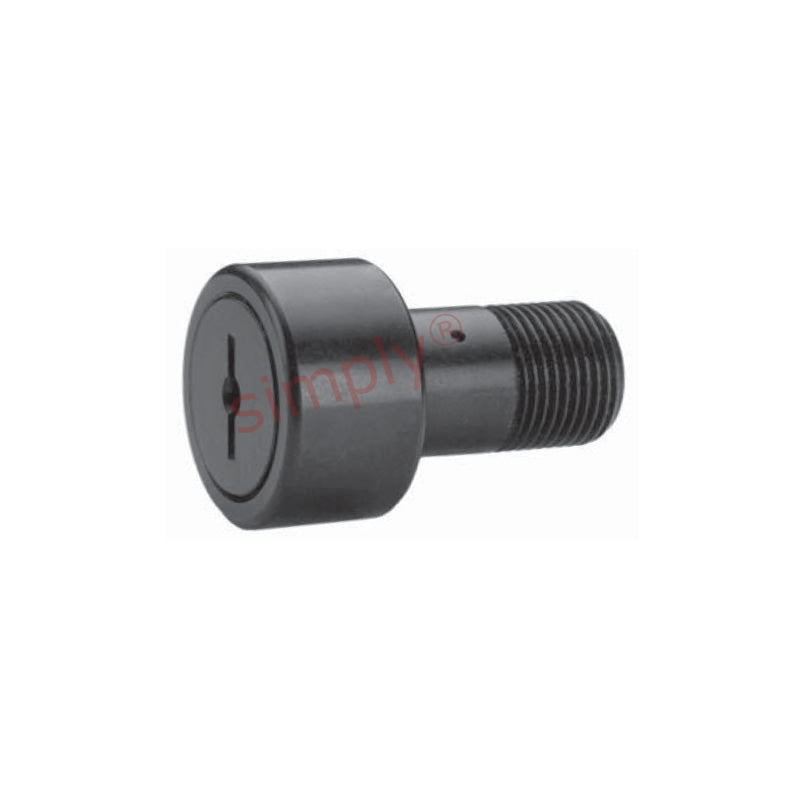

• Major Brand CNBH64 Heavy Duty Slotted Cylindrical Cam Follower 2 inch Outside Diameter
1 1

SKU: CNBH-64

Major Brand CNBH64 Heavy Duty Slotted Cylindrical Cam Follower 2 inch Outside Diameter

Major Brand CNBH64 Heavy Duty Slotted Cylindrical Cam Follower 2 inch Outside Diameter
$103.43 ex VAT
$103.43 ex VAT
Sale Sold out

Equivalent to: CFH-2 H-64 HR-2 CRH-32

In stock

Price Break
3+ $69.28
4+ $65.38
9+ $64.61
19+ $63.83
29+ $63.05
39+ $62.27
49+ $58.38
59+ $57.60
249+ $56.82
499+ $56.04
999+ $54.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
50.8mm = 2 inch
Width:
31.75mm = 1.25 (1-1/4) inch
Pitch:
UNF 1-1/8-12
Technical
A 2 inch
B 1.25 inch
C 1.125 inch
D 2 inch
E 1 inch
Thread class 2A F 1-1/8-12 UNF
G 1/2 inch
H 1/8 inch
J 3/16 inch
Min boss diameter 1-13/32 inch
Recommended bore 1.125 inch
Recommended torque 2800 lbf-in
Max static capacity 21140 lbs
Basic dynamic rating 8090 lbs
