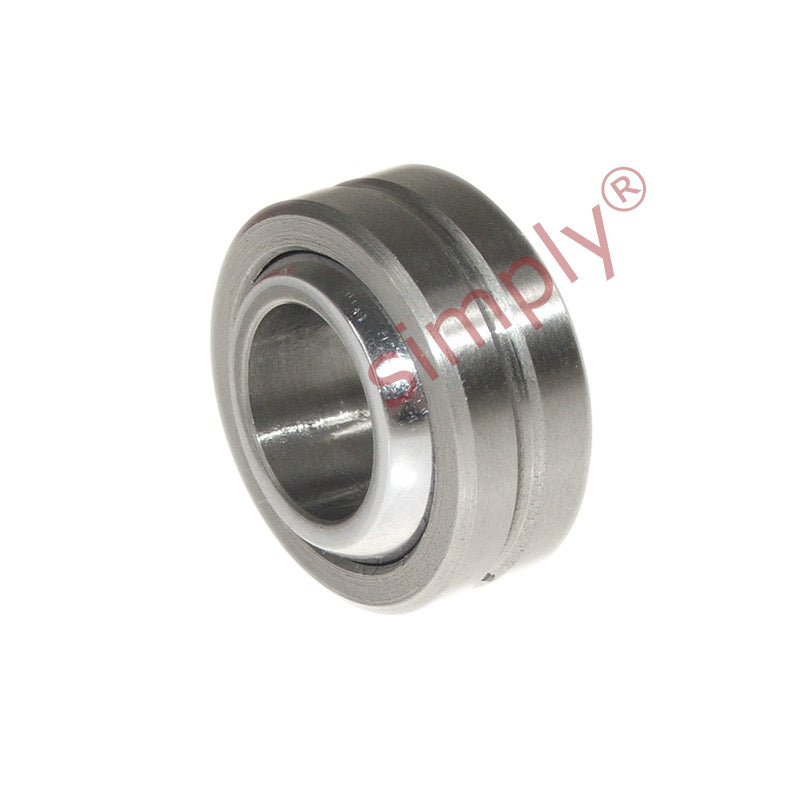

• COM03 Imperial Spherical Plain Bearing 3/16 inch Bore
1 1

SKU: COM03-EU

COM03 Imperial Spherical Plain Bearing 3/16 inch Bore

COM03 Imperial Spherical Plain Bearing 3/16 inch Bore
$10.58 ex VAT
$10.58 ex VAT
Sale Sold out

In stock

Price Break
10+ $7.08
19+ $6.68
29+ $6.60
39+ $6.52
49+ $6.44
74+ $6.36
99+ $5.97
199+ $5.89
249+ $5.81
499+ $5.73
999+ $5.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
4.76mm = 0.187 (3/16) inch
Outside Diameter:
14.29mm = 0.563 (9/16) inch
Width:
7.14mm = 0.281 (9/32) inch
Technical
b 3/16 inch
w 9/32 inch
h 9/32 inch
D 9/16 inch
O 0.293 inch
Static load 14464 N
