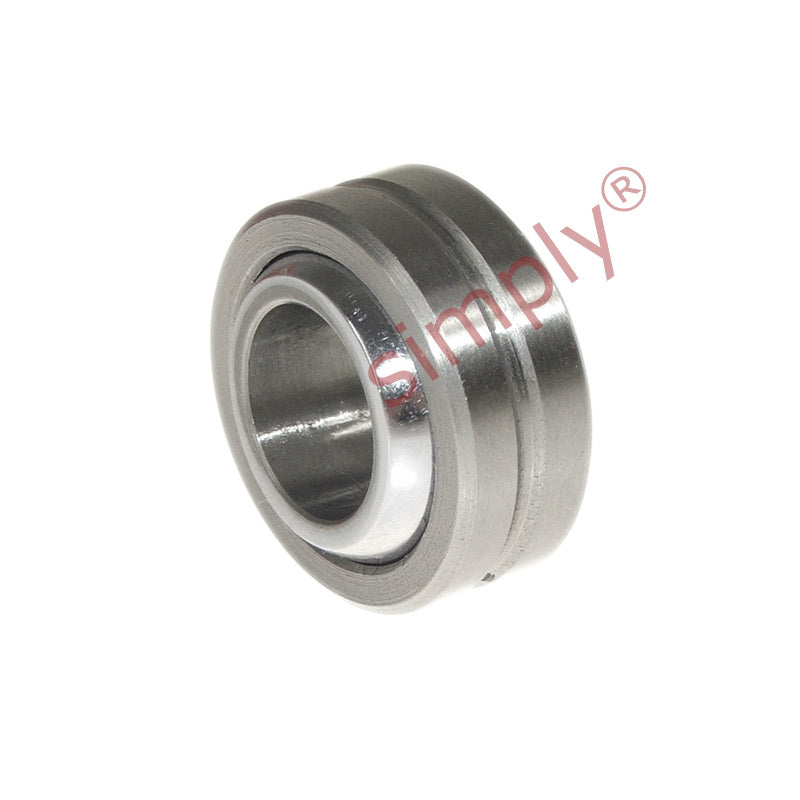

• COM04 Imperial Spherical Plain Bearing 1/4 inch Bore
1 1

SKU: COM04-EU

COM04 Imperial Spherical Plain Bearing 1/4 inch Bore

COM04 Imperial Spherical Plain Bearing 1/4 inch Bore
$6.46 ex VAT
$6.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $4.32
19+ $4.08
29+ $4.03
39+ $3.98
49+ $3.93
74+ $3.88
99+ $3.64
199+ $3.59
249+ $3.54
499+ $3.50
999+ $3.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
6.35mm = 0.25 (1/4) inch
Outside Diameter:
16.67mm = 0.656 (21/32) inch
Width:
6.35mm = 0.25 (1/4) inch

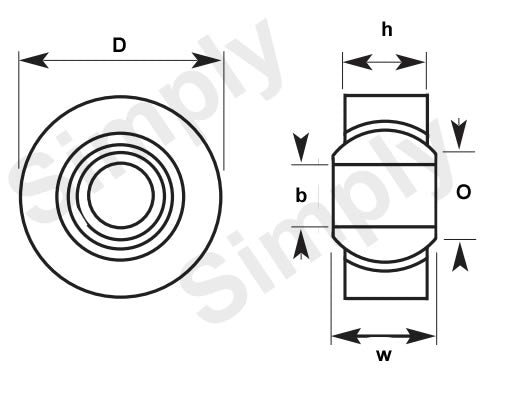

Technical
b 1/4 inch
w 11/32 inch
h 1/4 inch
D 21/32 inch
O 0.364 inch
Static load 22015 N
