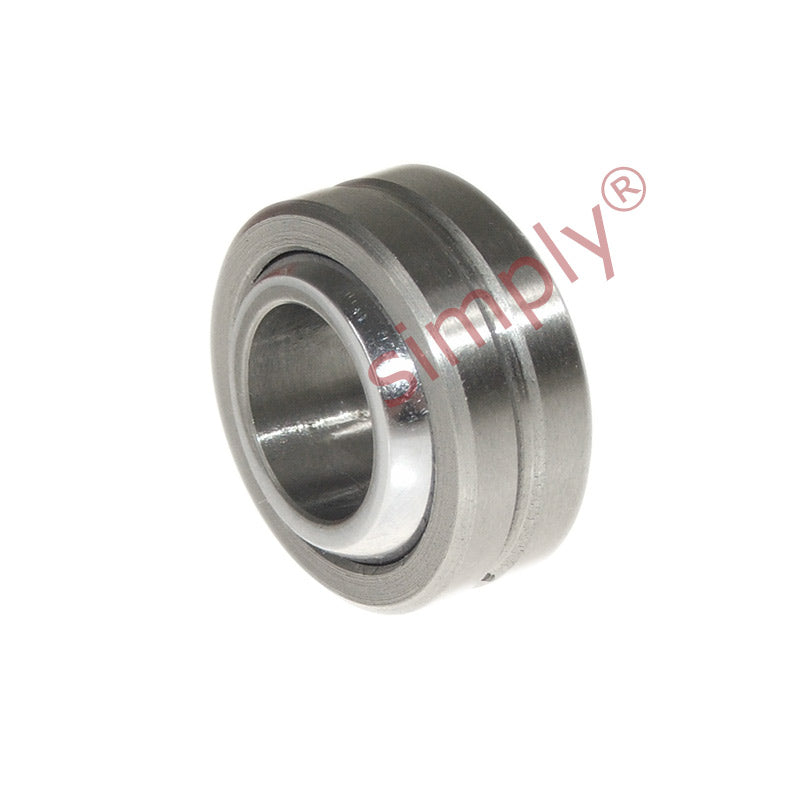

• COM09T Branded PTFE Lined Imperial Spherical Plain Bearing 9/16 inch Bore
1 1

SKU: COM09T-MB

COM09T Branded PTFE Lined Imperial Spherical Plain Bearing 9/16 inch Bore

COM09T Branded PTFE Lined Imperial Spherical Plain Bearing 9/16 inch Bore
$22.57 ex VAT
$22.57 ex VAT
Sale Sold out

In stock

Price Break
10+ $15.12
19+ $14.27
29+ $14.10
39+ $13.93
49+ $13.76
74+ $13.59
99+ $12.74
199+ $12.58
249+ $12.41
499+ $12.24
999+ $11.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
14.29mm = 0.563 (9/16) inch
Outside Diameter:
27.78mm = 1.094 (1-3/32) inch
Width:
11.11mm = 0.437 (7/16) inch
Technical
b 9/16 inch
w 9/16 inch
h 7/16 inch
D 1-3/32 inch
O 0.71 inch
Static load 73967 N
