SKU: COM10-MB

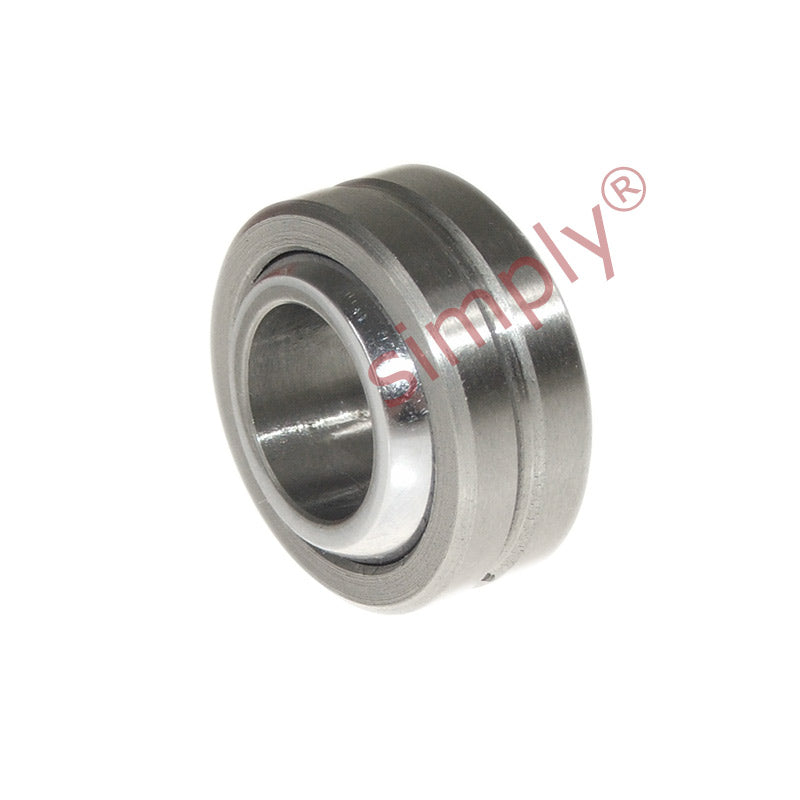

COM10 Branded Imperial Spherical Plain Bearing 5/8 inch Bore

Name: COM10 Branded Imperial Spherical Plain Bearing 5/8 inch Bore
Brand: Major Brand
SKU: COM10-MB
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 15.88mm = 0.625 (5/8) inch
Outside Diameter:: 30.16mm = 1.187 (1-3/16) inch
Width:: 12.7mm = 0.5 (1/2) inch

Technical

b	5/8 inch
w	5/8 inch
h	1/2 inch
D	1-3/16 inch
O	0.78 inch
Static load	94658 N
