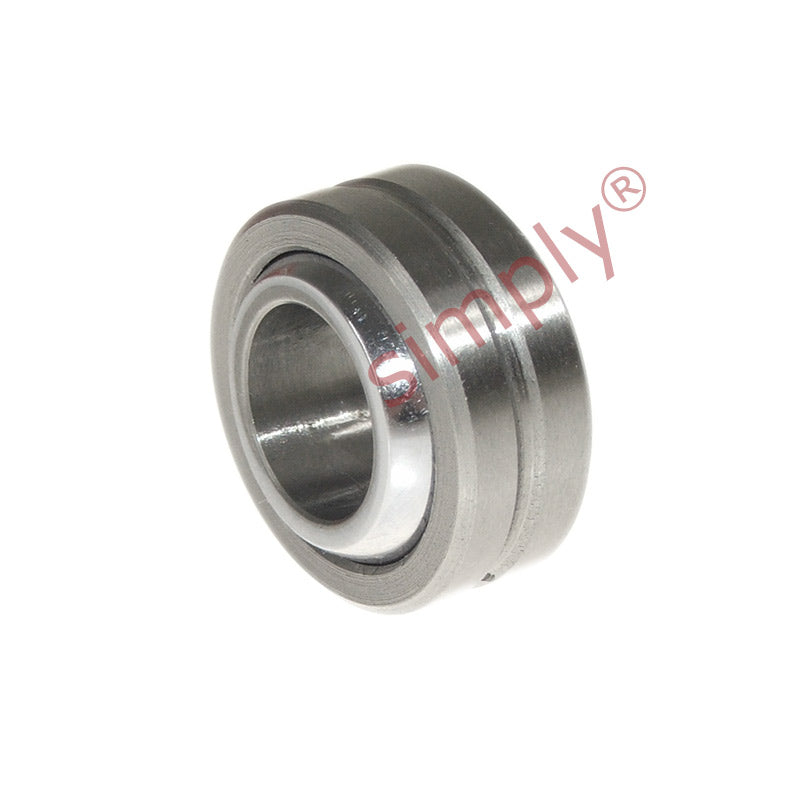

• COM12 Imperial Spherical Plain Bearing 3/4 inch Bore
1 1

SKU: COM12-EU

COM12 Imperial Spherical Plain Bearing 3/4 inch Bore

COM12 Imperial Spherical Plain Bearing 3/4 inch Bore
$13.35 ex VAT
$13.35 ex VAT
Sale Sold out

In stock

Price Break
10+ $8.94
19+ $8.44
29+ $8.34
39+ $8.24
49+ $8.14
74+ $8.04
99+ $7.54
199+ $7.43
249+ $7.33
499+ $7.23
999+ $7.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
36.51mm = 1.437 (1-7/16) inch
Width:
15.08mm = 0.594 (19/32) inch
Technical
b 3/4 inch
w 3/4 inch
h 19/32 inch
D 1-7/16 inch
O 0.92 inch
Static load 141982 N
