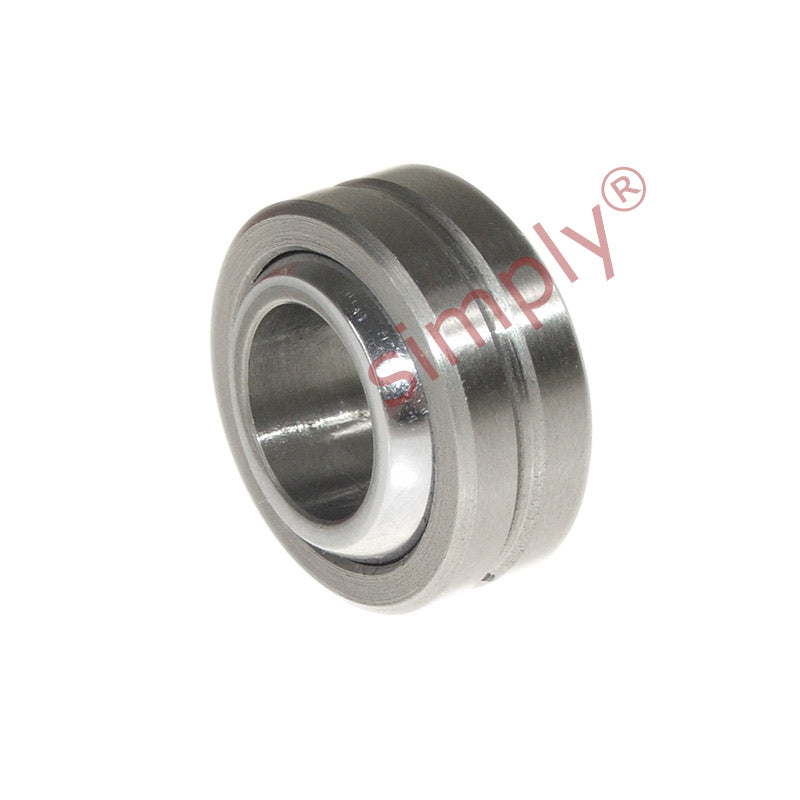

• COM12T PTFE Lined Imperial Spherical Plain Bearing 3/4 inch Bore
1 1

SKU: COM12T-EU

COM12T PTFE Lined Imperial Spherical Plain Bearing 3/4 inch Bore

COM12T PTFE Lined Imperial Spherical Plain Bearing 3/4 inch Bore
$14.31 ex VAT
$14.31 ex VAT
Sale Sold out

In stock

Price Break
10+ $9.59
19+ $9.05
29+ $8.94
39+ $8.83
49+ $8.72
74+ $8.62
99+ $8.08
199+ $7.97
249+ $7.86
499+ $7.76
999+ $7.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
36.51mm = 1.437 (1-7/16) inch
Width:
15.08mm = 0.594 (19/32) inch
Technical
b 3/4 inch
w 3/4 inch
h 19/32 inch
D 1-7/16 inch
O 0.92 inch
Static load 141982 N
