SKU: COM14T-EU

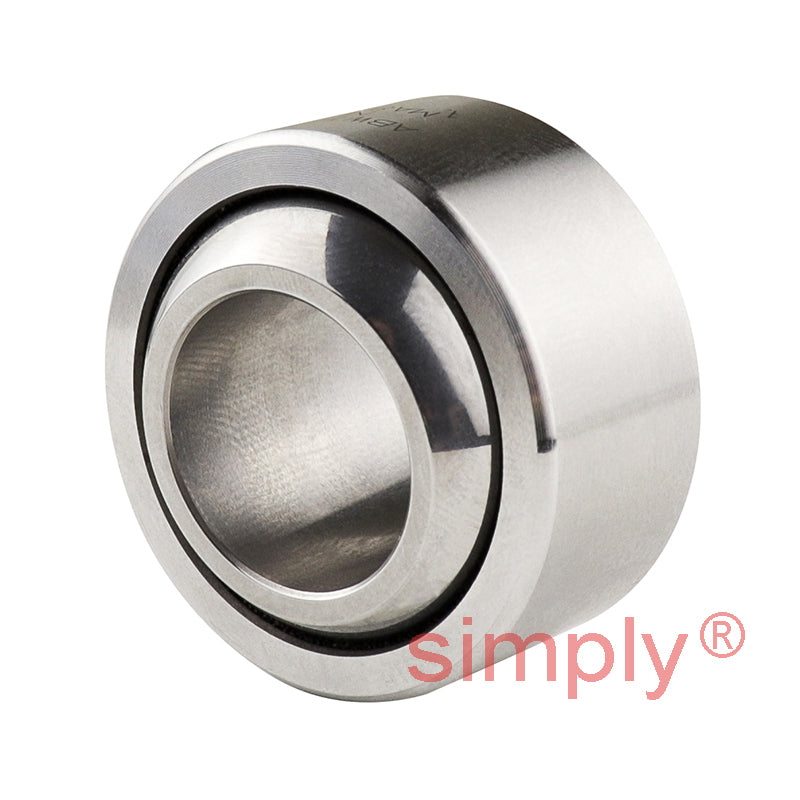

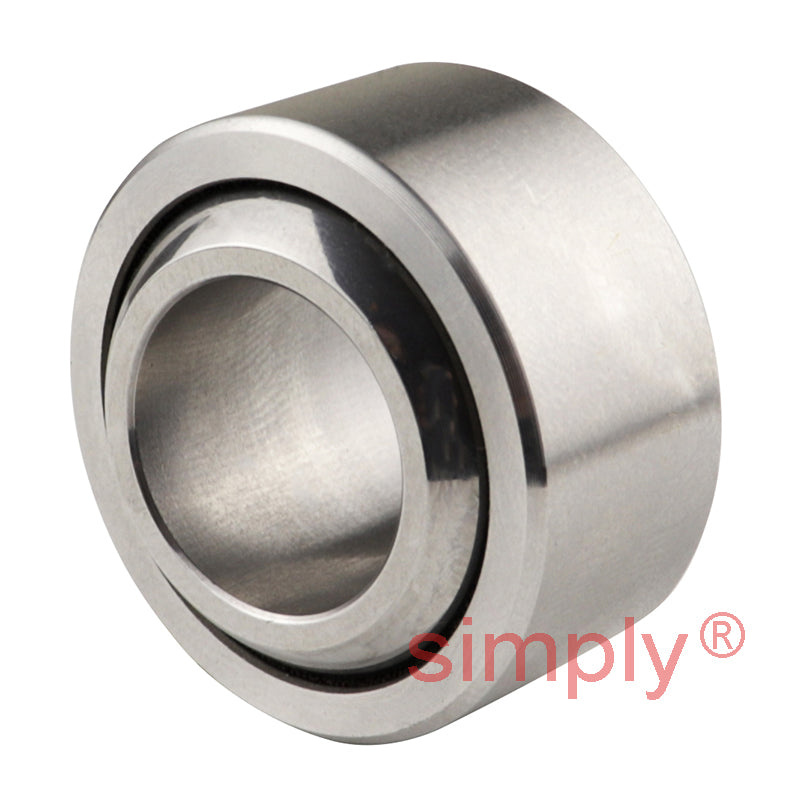

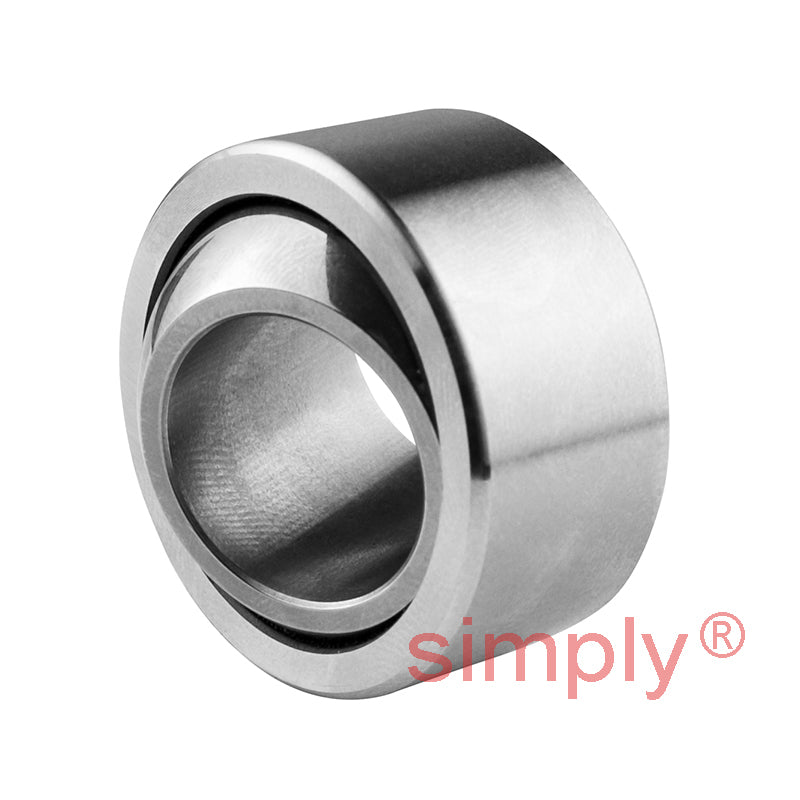

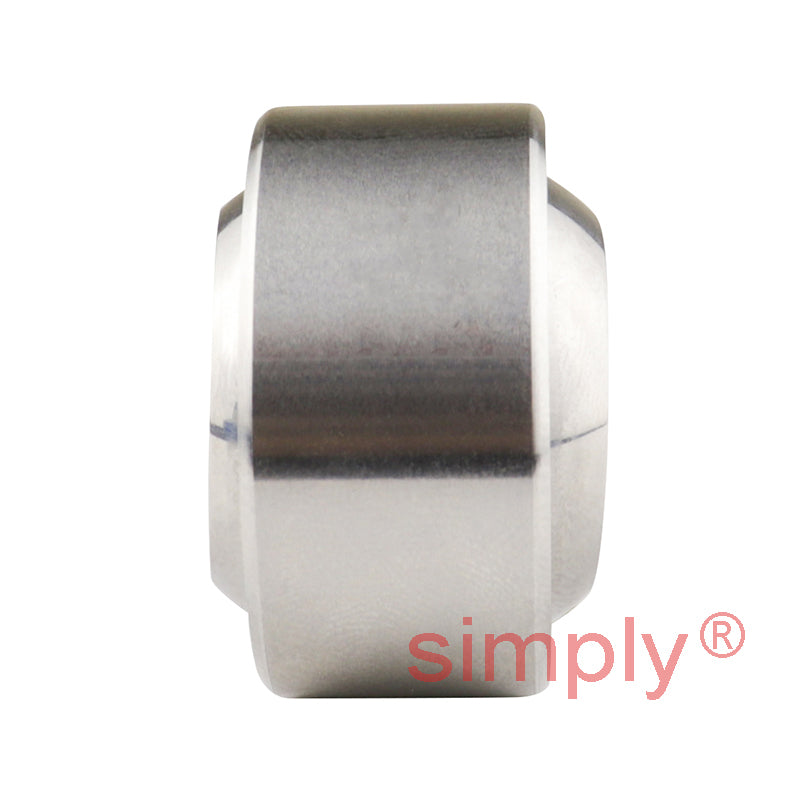

COM14T PTFE Lined Imperial Spherical Plain Bearing 7/8 inch Bore

COM14T PTFE Lined Imperial Spherical Plain Bearing 7/8 inch Bore
$17.59 ex VAT
$17.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $11.78
19+ $11.12
29+ $10.99
39+ $10.86
49+ $10.72
74+ $10.59
99+ $9.93
199+ $9.80
249+ $9.66
499+ $9.53
999+ $9.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Outside Diameter:
39.69mm = 1.563 (1-9/16) inch
Width:
17.86mm = 0.703 (45/64) inch

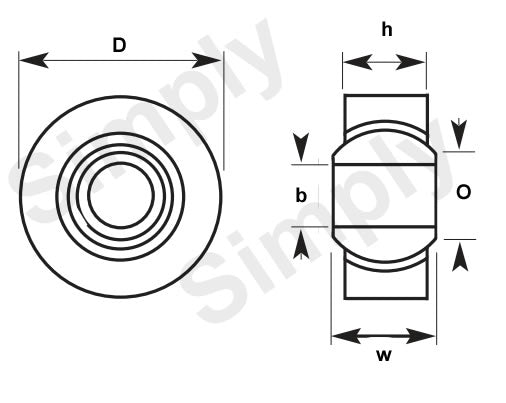

Technical
b 7/8 inch
w 7/8 inch
h 45/64 inch
D 1-9/16 inch
O 0.98 inch
Static load 186639 N
