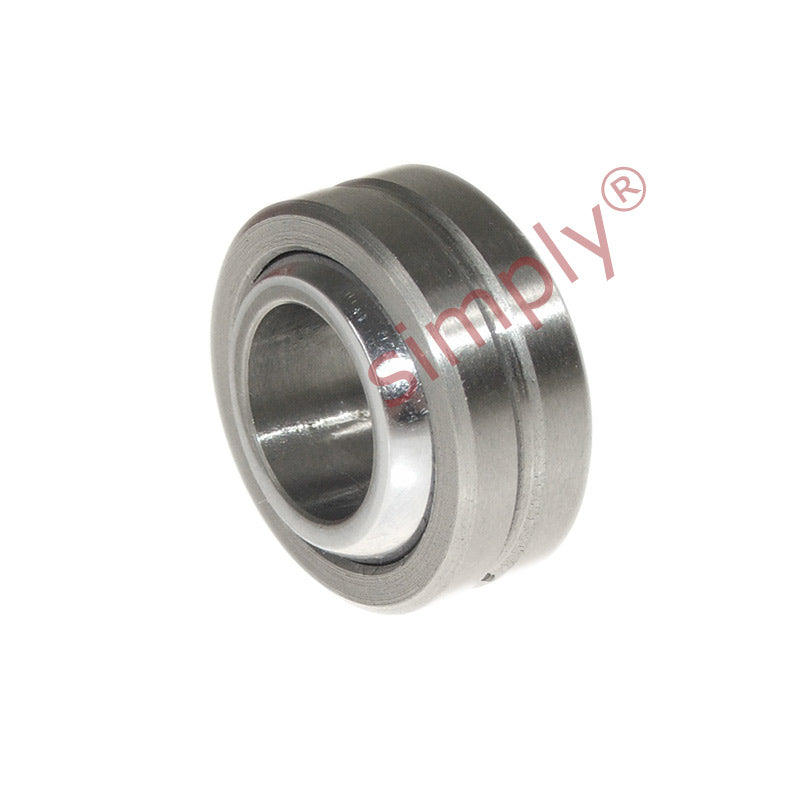

• COM16T PTFE Lined Imperial Spherical Plain Bearing 1 inch Bore
1 1

SKU: COM16T-EU

COM16T PTFE Lined Imperial Spherical Plain Bearing 1 inch Bore

COM16T PTFE Lined Imperial Spherical Plain Bearing 1 inch Bore
$31.90 ex VAT
$31.90 ex VAT
Sale Sold out

In stock

Price Break
10+ $21.37
19+ $20.17
29+ $19.93
39+ $19.69
49+ $19.45
74+ $19.21
99+ $18.01
199+ $17.77
249+ $17.53
499+ $17.29
999+ $16.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
44.45mm = 1.75 (1-3/4) inch
Width:
20.24mm = 0.797 (51/64) inch
Technical
b 1 inch
w 1 inch
h 51/64 inch
D 1-3/4 inch
O 1.118 inch
Static load 245534 N
