SKU: COT.3.2X20

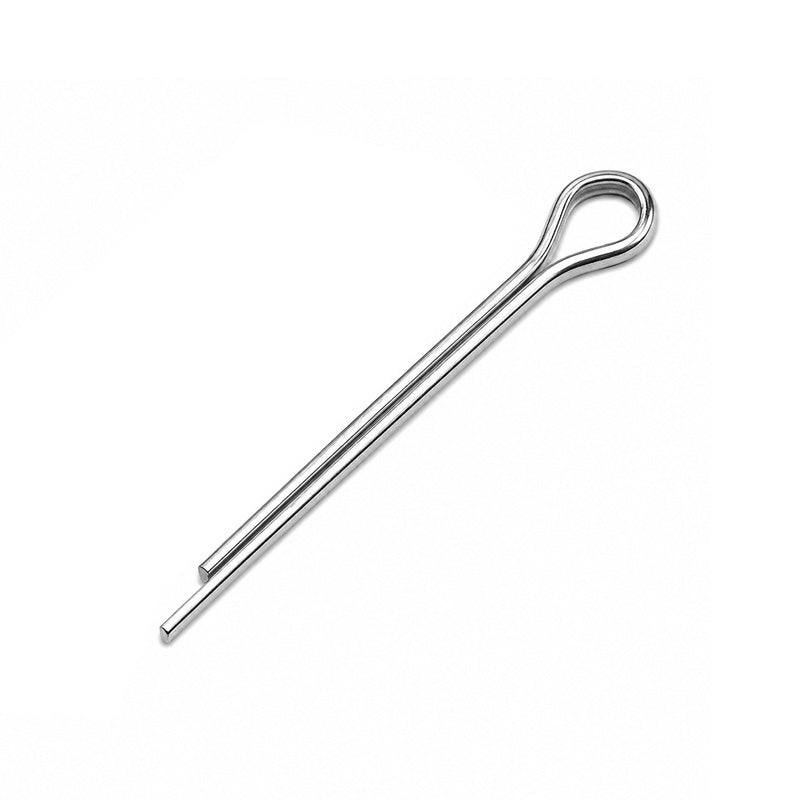

Metric Mild Steel Split Cotter Pin 3.2x20mm - Allow 2-3 Days
Metric Mild Steel Split Cotter Pin 3.2x20mm - Allow 2-3 Days
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Mild Steel Split Cotter Pins: Made from Mild steel these pins are ideally suited to both indoor or outdoor applications. Can be used for applications such as securing bearing lock nuts on shafts, tailboard/ramp retention on trailers, and many other instances where no permanent method of securing an item is required.
Benefits: Inexpensive, re-useable
- Brand / Quality:
- Simply Cotter Pins - High Quality
- Outside Diameter:
- 3.2mm
- Length:
- 20mm
- Material:
- Mild Steel
Technical
Technical
| Diameter (d-D) | 3.2mm |
|---|---|
| Length (L) | 20mm |
| a (max.) | 3.2mm |
| b ≈ | 6.4mm |
| c (max.) | 5.8mm |
| c (min.) | 5.1mm |
| d1 (max.) | 2.9mm |
| d1 (min.) | 2.7mm |
