SKF CR38.5x58x7HMSA10RG Double Lip Nitrile Rubber Rotary Shaft Seal

SKU: CR.38.5x58x7.HMSA10.RG

SKF CR38.5x58x7HMSA10RG Double Lip Nitrile Rubber Rotary Shaft Seal

$12.90 ex VAT
$12.90
ex VAT
In stock

Quantity Price Breaks

10 $11.48
20 $10.84
30 $10.71
40 $10.58
50 $10.45
75 $10.32
100 $9.68
200 $9.55
250 $9.42
500 $9.29
1000 $9.03
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF CR38.5x58x7HMSA10RG Double Lip Nitrile Rubber Rotary Shaft Seal
SKU: CR.38.5x58x7.HMSA10.RG

SKF CR38.5x58x7HMSA10RG Double Lip Nitrile Rubber Rotary Shaft Seal

$12.90 ex VAT
$12.90
ex VAT

Description

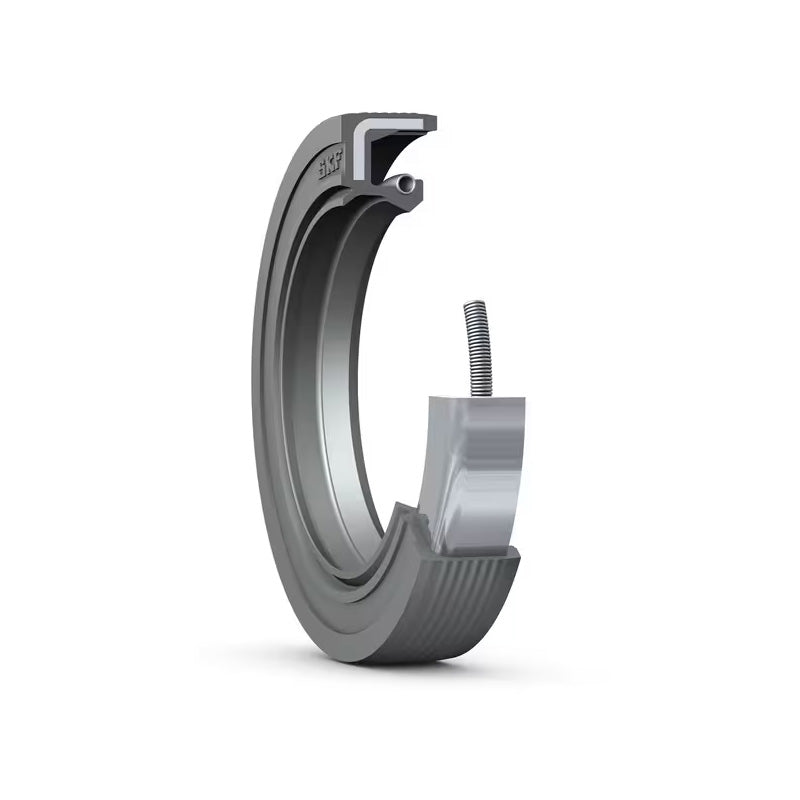

SKF HMSA10 Nitrile Oil Seals: This radial shaft seal consists of a spring-loaded sealing lip, a non-contacting auxiliary lip and a beaded outside diameter. The rubber outside diameter provides optimised sealing ability in the housing, also at considerable surface roughness or in split housings. The beads provide improved sealing ability and retention in the bore. They also prevent spring back at installation. Designed for optimum use in bearing applications lubricated with oil or grease in temperatures from -40 deg C to +100 deg C (104 deg F to 212 deg F), short-term up to 120 deg C (248 deg F), for synthetic lubricants maximum 80 deg C (176 deg F). These seals are also appropriate for sealing lubricants with low viscosity or gaseous media.
Benefits: Good wear resistance, very good compatibility to synthetic oils

Technical

Shaft Size not Inside Diameter (d) = 38.5mm
Outside Diameter (D) = 58mm
Width (b) = 7mm
