SKU: CRB20/76-INA

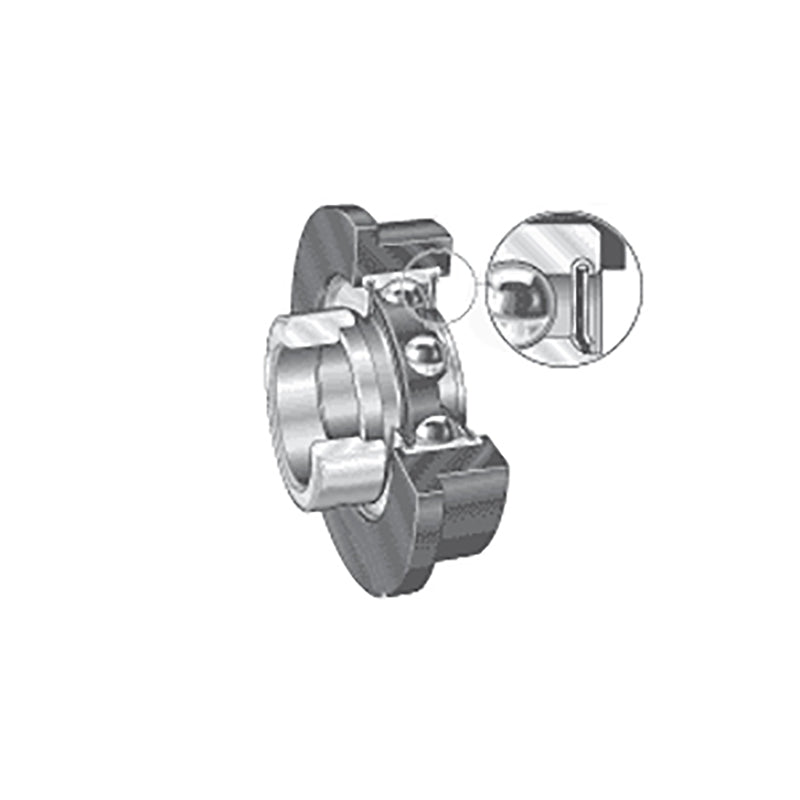

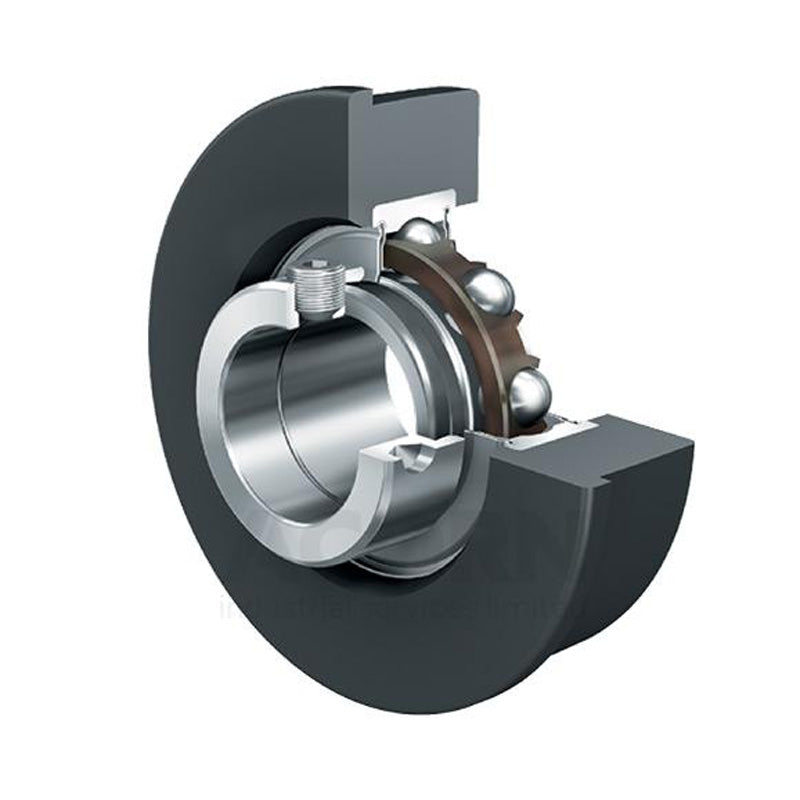

INA CRB20/76XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x77.5x36mm

Name: INA CRB20/76XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x77.5x36mm
Brand: INA
SKU: CRB20/76-INA
Price: 39.22 USD
Availability: InStock

$39.22 ex VAT

Sale Sold out

In stock

Price Break

3+ $26.27

5+ $24.80

10+ $24.50

15+ $24.21

20+ $23.91

30+ $23.62

40+ $22.14

50+ $21.84

60+ $21.55

75+ $21.25

100+ $20.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 77.5mm
Width:: 36mm

Technical

d	20mm
D	77.5mm
B2	36mm
B1	31mm
C	25.4mm
C1	5mm
D1	80mm
D2	40mm
d3 max	33mm
S2	12.5mm
Operating temperature	-20 deg C to +85 deg C
Rubber ring: hardness, Shore A	80 deg
Rubber ring: load carrying capacity Cg	750 N
Dynamic load Cr	12800 N
Static load C0r	6600 N
Designation of rubber interliner	CR47/76
Designation of bearing	RAE20-NPP
Weight	0.3 kg
