SKU: CRB20/83-INA

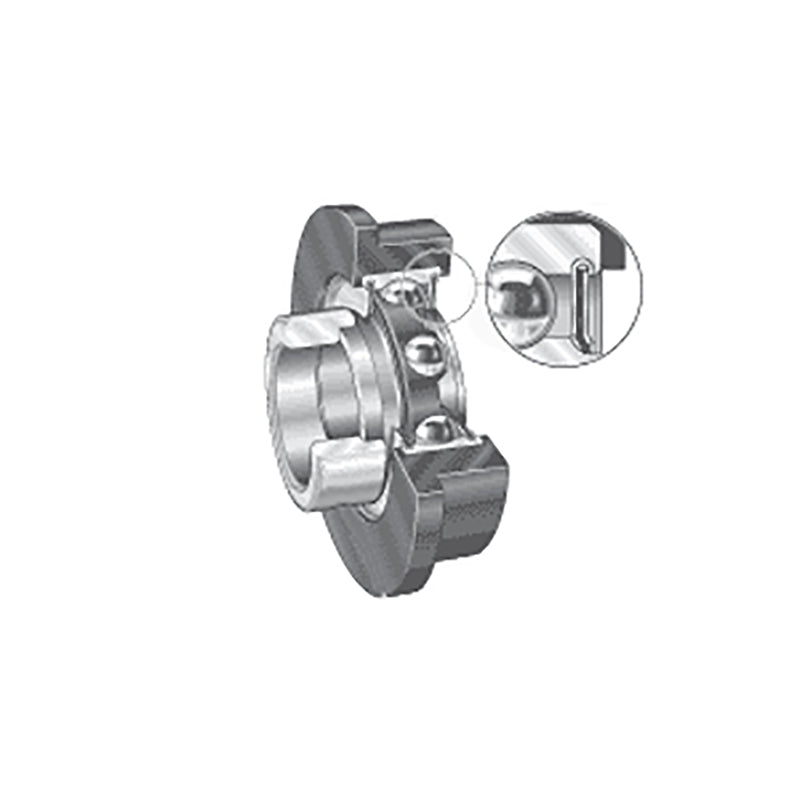

INA CRB20/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x83.6x36.2mm

Name: INA CRB20/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x83.6x36.2mm
Brand: INA
SKU: CRB20/83-INA
Price: 47.09 USD
Availability: InStock

$47.09 ex VAT

Sale Sold out

In stock

Price Break

3+ $31.54

5+ $29.77

10+ $29.42

15+ $29.06

20+ $28.71

30+ $28.35

40+ $26.58

50+ $26.23

60+ $25.87

75+ $25.52

100+ $24.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 83.6mm
Width:: 36.2mm

Technical

d	20mm
D	83.6mm
B2	36.2mm
B1	31mm
C	25.4mm
C1	4.8mm
D1	87.4mm
D2	40mm
d3 max	33mm
S2	12.7mm
Operating temperature	-20 deg C to +85 deg C
Rubber ring: hardness, Shore A	80 deg
Rubber ring: load carrying capacity Cg	750 N
Dynamic load Cr	12800 N
Static load C0r	6600 N
Designation of rubber interliner	CR47/83
Designation of bearing	RAE20-NPP
Weight	0.3 kg
