• INA CRB25/70XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x71.5x36mm
  • INA
1 2

SKU: CRB25/70-INA

INA CRB25/70XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x71.5x36mm

INA CRB25/70XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x71.5x36mm
$47.61 ex VAT
$47.61 ex VAT
Sale Sold out

In stock

Price Break
3+ $31.89
5+ $30.10
10+ $29.74
15+ $29.38
20+ $29.02
30+ $28.66
40+ $26.87
50+ $26.51
60+ $26.16
75+ $25.80
100+ $25.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

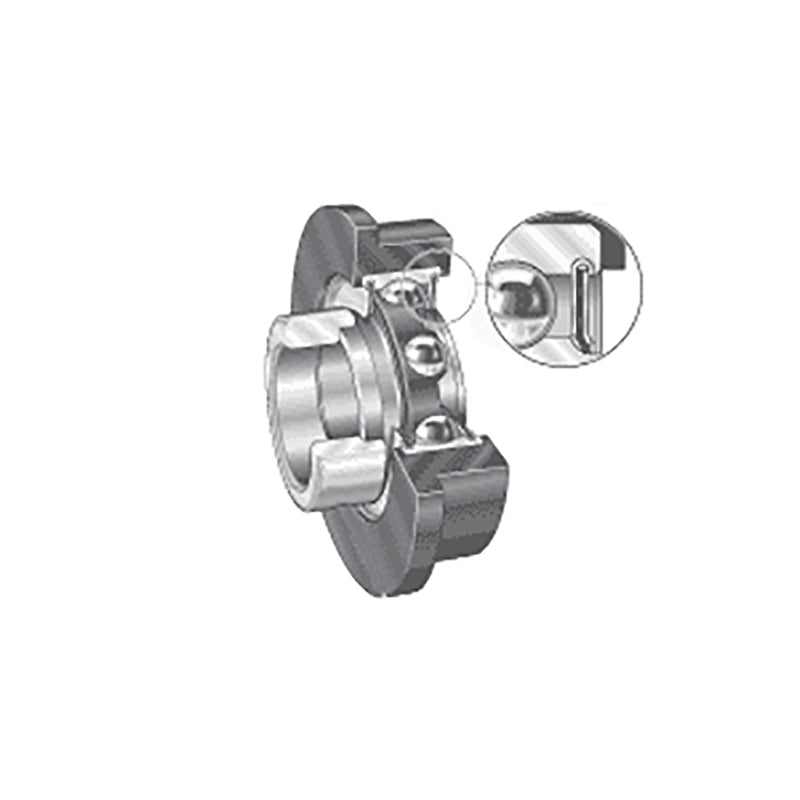

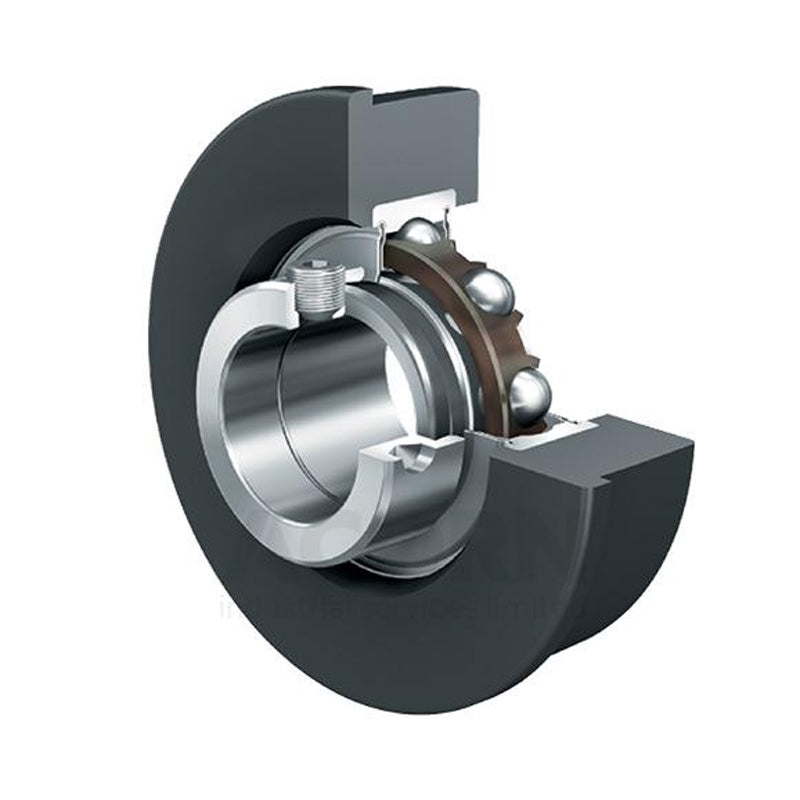

INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Outside Diameter:
71.5mm
Width:
36mm
Technical
d 25mm
D 71.5mm
B2 36mm
B1 31mm
C 25mm
C1 5mm
D1 76mm
D2 46mm
d3 max 37.5mm
S2 12.5mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 80 deg
Rubber ring: load carrying capacity Cg 1000 N
Dynamic load Cr 14000 N
Static load C0r 7800 N
Designation of rubber interliner CR52/70
Designation of bearing RAE25-NPP
Weight 0.32 kg
