SKU: CRB25/72-INA

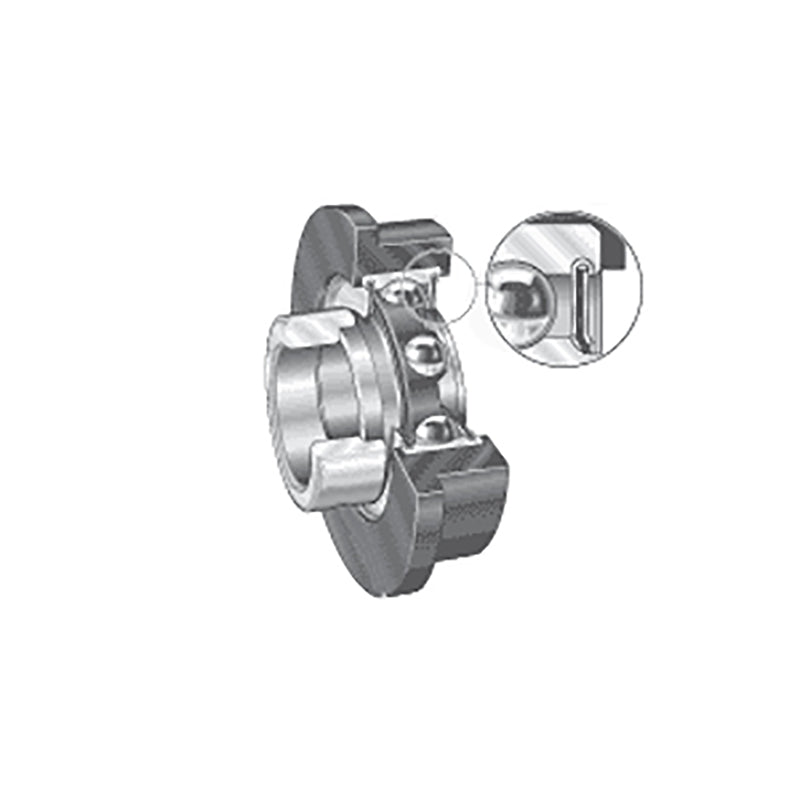

INA CRB25/72XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x73x36mm

Name: INA CRB25/72XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x73x36mm
Brand: INA
SKU: CRB25/72-INA
Price: 48.22 USD
Availability: InStock

$48.22 ex VAT

Sale Sold out

In stock

Price Break

3+ $32.30

5+ $30.48

10+ $30.12

15+ $29.76

20+ $29.39

30+ $29.03

40+ $27.22

50+ $26.85

60+ $26.49

75+ $26.13

100+ $25.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 73mm
Width:: 36mm

Technical

d	25mm
D	73mm
B2	36mm
B1	31mm
C	25mm
C1	5mm
D1	80mm
D2	46mm
d3 max	37.5mm
S2	12.5mm
Operating temperature	-20 deg C to +85 deg C
Rubber ring: hardness, Shore A	80 deg
Rubber ring: load carrying capacity Cg	1000 N
Dynamic load Cr	14000 N
Static load C0r	7800 N
Designation of rubber interliner	CR52/72
Designation of bearing	RAE25-NPP
Weight	0.32 kg
