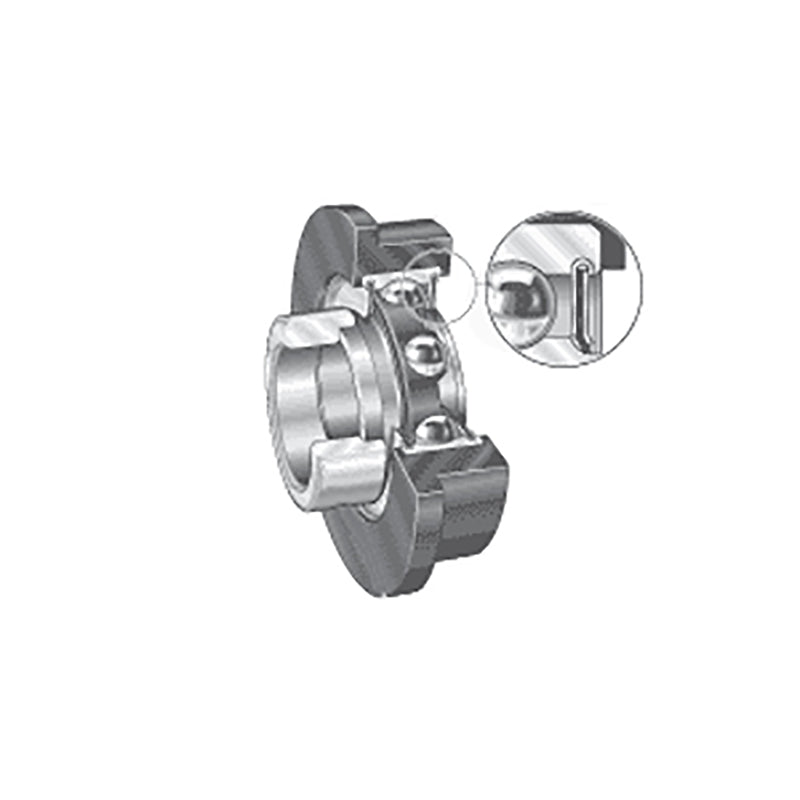

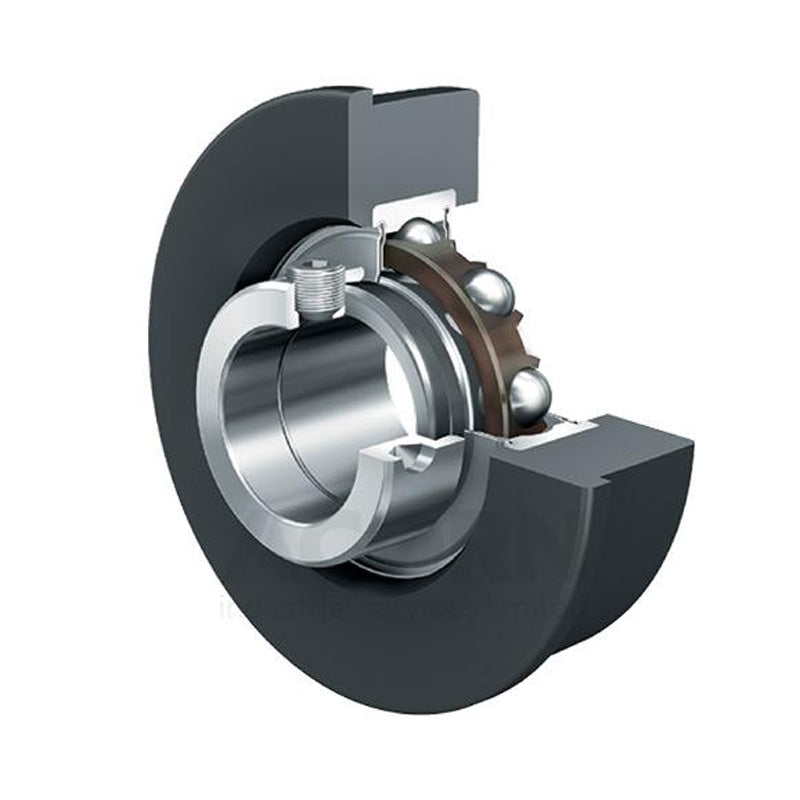

• INA CRB30/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x83.6x40.7mm
  • INA
1 2

SKU: CRB30/83-INA

INA CRB30/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x83.6x40.7mm

INA CRB30/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x83.6x40.7mm
$53.61 ex VAT
$53.61 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.91
5+ $33.89
10+ $33.49
15+ $33.09
20+ $32.68
30+ $32.28
40+ $30.26
50+ $29.86
60+ $29.46
75+ $29.05
100+ $28.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Outside Diameter:
83.6mm
Width:
40.7mm
Technical
d 30mm
D 83.6mm
B2 40.7mm
B1 35.8mm
C 28mm
C1 4.8mm
D1 87.4mm
D2 56mm
d3 max 44mm
S2 14mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 80 deg
Rubber ring: load carrying capacity Cg 1400 N
Dynamic load Cr 19500 N
Static load C0r 11300 N
Designation of rubber interliner CR62/83
Designation of bearing RAE30-NPP
Weight 0.41 kg
