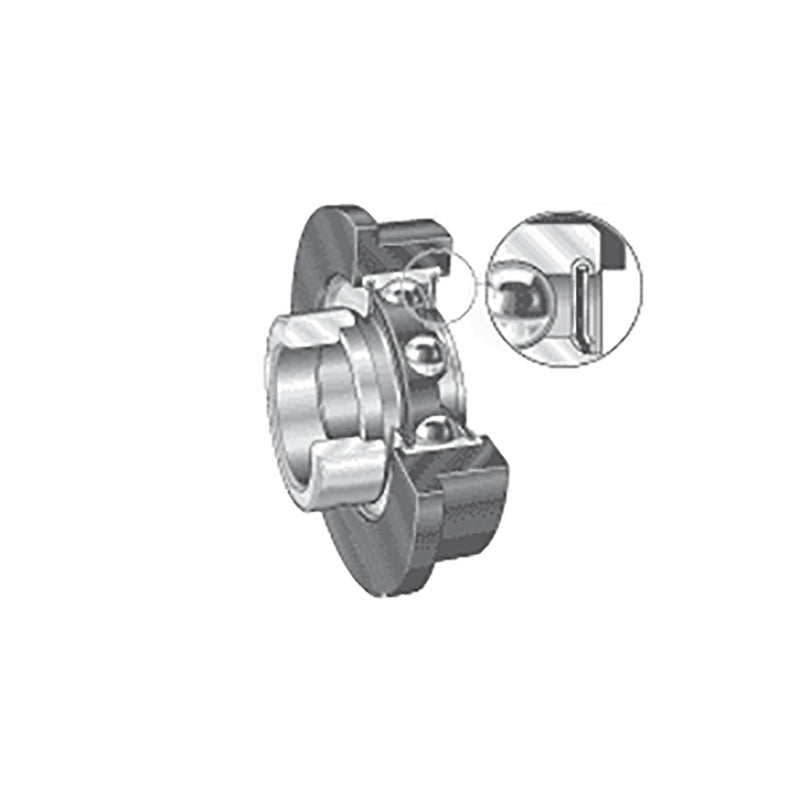

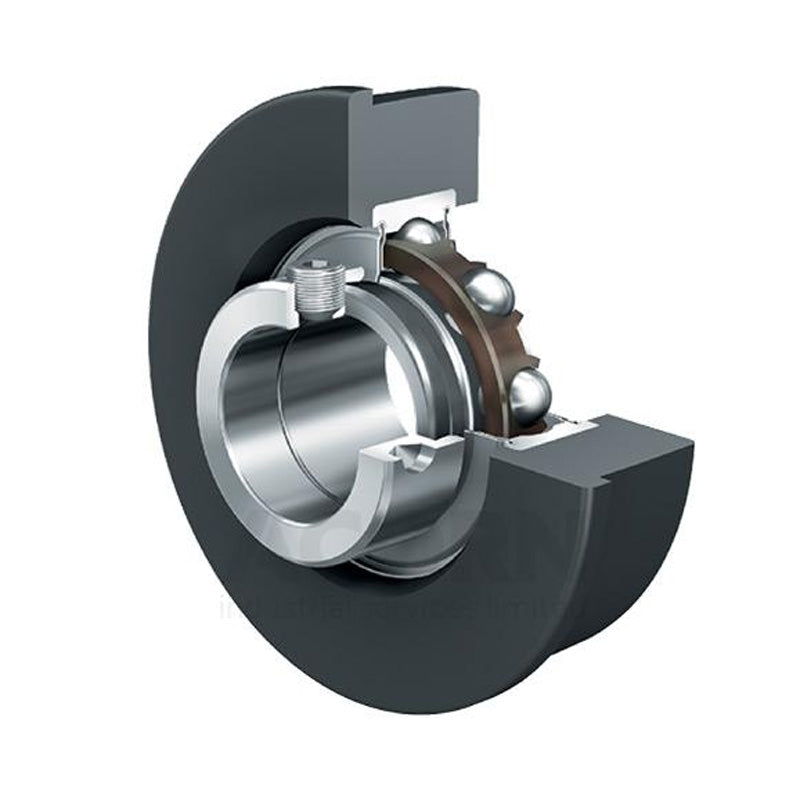

• INA CRB30/92XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x93x40.7mm
  • INA
1 2

SKU: CRB30/92-INA

INA CRB30/92XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x93x40.7mm

INA CRB30/92XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x93x40.7mm
$61.69 ex VAT
$61.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $41.32
5+ $39.00
10+ $38.54
15+ $38.07
20+ $37.61
30+ $37.14
40+ $34.82
50+ $34.36
60+ $33.89
75+ $33.43
100+ $32.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Outside Diameter:
93mm
Width:
40.7mm
Technical
d 30mm
D 93mm
B2 40.7mm
B1 35.8mm
C 28mm
C1 5mm
D1 98mm
D2 56mm
d3 max 44mm
S2 14mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 80 deg
Rubber ring: load carrying capacity Cg 1400 N
Dynamic load Cr 19500 N
Static load C0r 11300 N
Designation of rubber interliner CR62/92
Designation of bearing RAE30-NPP
Weight 0.41 kg
