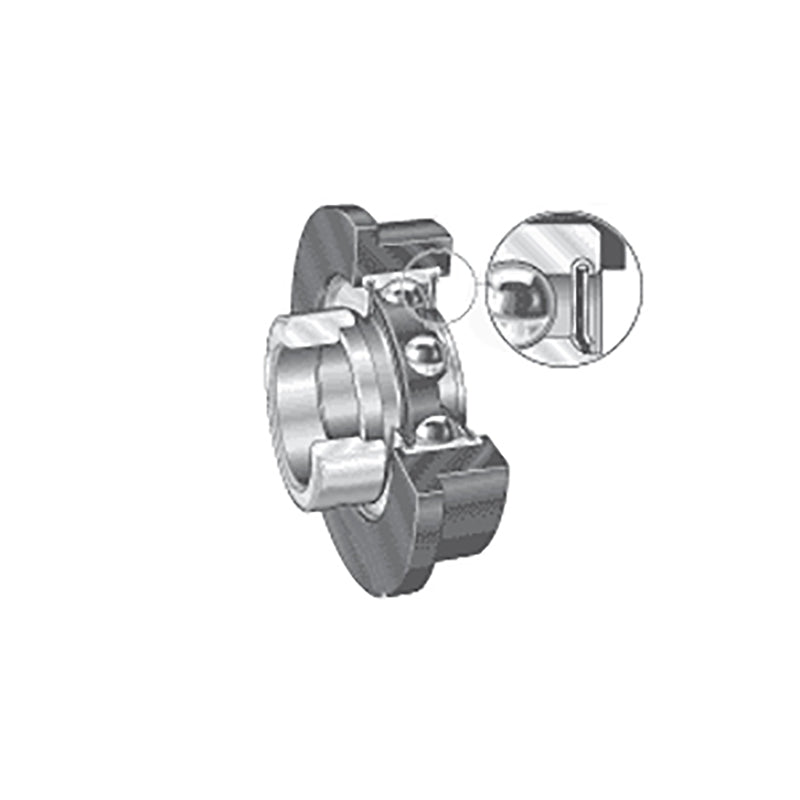

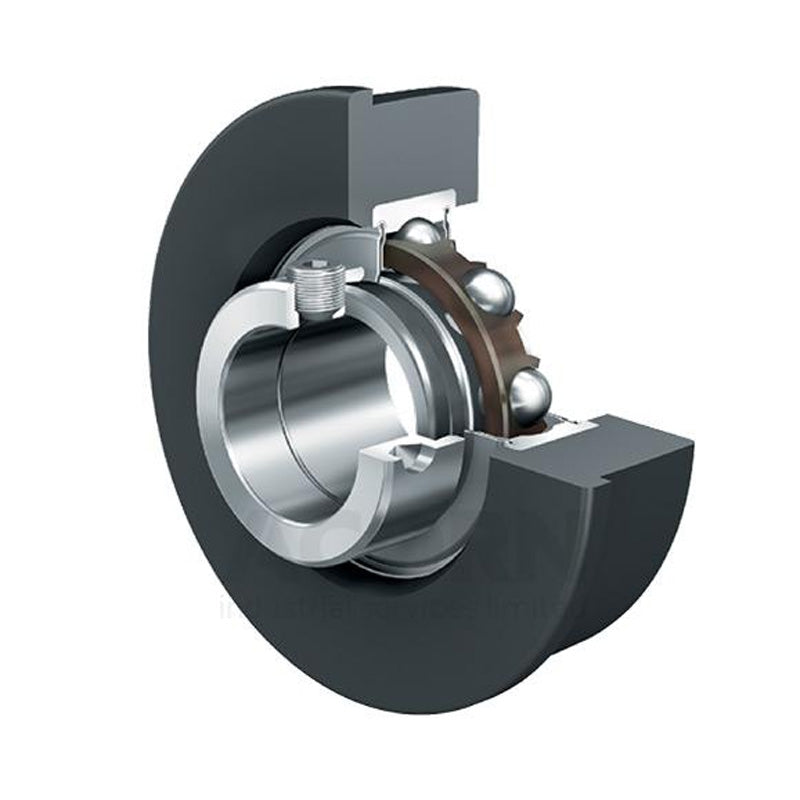

• INA CRB35/110XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x112.3x44.4mm
  • INA
1 2

SKU: CRB35/110-INA

INA CRB35/110XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x112.3x44.4mm

INA CRB35/110XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x112.3x44.4mm
$74.22 ex VAT
$74.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $49.72
5+ $46.92
10+ $46.36
15+ $45.81
20+ $45.25
30+ $44.69
40+ $41.90
50+ $41.34
60+ $40.78
75+ $40.22
100+ $39.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Outside Diameter:
112.3mm
Width:
44.4mm
Technical
d 35mm
D 112.3mm
B2 44.4mm
B1 39mm
C 30mm
C1 5mm
D1 120mm
D2 64mm
d3 max 51mm
S2 15mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 80 deg
Rubber ring: load carrying capacity Cg 1500 N
Dynamic load Cr 25500 N
Static load C0r 15300 N
Designation of rubber interliner CR72/110
Designation of bearing RAE35-NPP
Weight 0.56 kg
