SKU: CRP.HBK.5X35MM

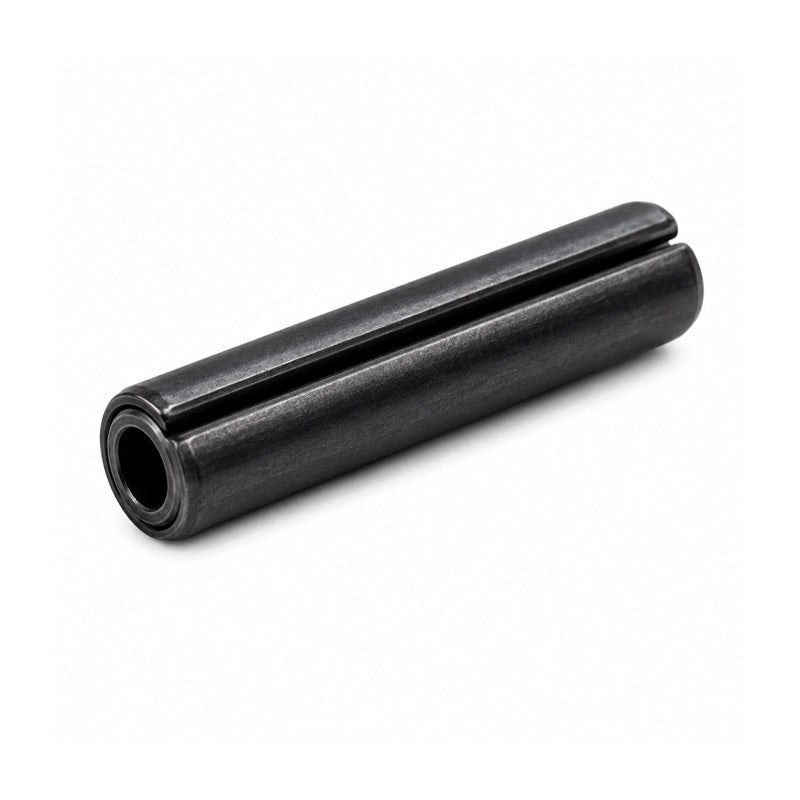

Metric Carbon Steel CS70 HBK Coiled Roll Pin 5x35mm with Plain Oiled Finish
Metric Carbon Steel CS70 HBK Coiled Roll Pin 5x35mm with Plain Oiled Finish
Regular price
$1.26
ex VAT
Regular price
Sale price
$1.26
ex VAT
In stock
Price Break
5+
$0.67
10+
$0.57
20+
$0.52
50+
$0.48
100+
$0.38
500+
$0.33
1000+
$0.29
Quantity
Couldn't load pickup availability
Description
Description
Coiled Carbon Steel Roll Pins with Plain Oiled Finish: These roll pins are manufactured from high-grade carbon steel (DIN 1481 / CS70). High-carbon steel provides great shear strength and fatigue life. The recommended service temperatures for high-grade carbon steel pins is between -45 Deg C and 150 Deg C.
These pins are completed with a dry-to-the-touch plain oiled finish. The oil finish provides corrosion resistance, protecting the pins during storage and shipping. As the oil is a lubricant, it reduces friction between the coils and allows for easier insertion.
Benefits: High shear strength, good fatigue life, corrosion-resistant finish
- Brand / Quality:
- Simply Coiled Roll Pins - High Quality
- Outside Diameter:
- 5mm
- Length:
- 35mm
- Material:
- Carbon Steel
- Grade:
- CS70
Technical
Technical
| Outside Diameter d1 | 5mm |
|---|---|
| Length L | 35mm |
| Length Tolerance | +/- 0.5mm |
| Chamfer Diameter B | 4.85mm (Approx) |
| Chamfer Length C | 1.3mm (Approx) |
| Material | Carbon Steel |
| Material Grade | CS70 |
| DIN / ISO | DIN7343 / ISO8750 |
| Finish | Plain Oiled Finish |
| Weight per pin | 0.0054kg |
