SKU: CRP.HCP.4X18MM

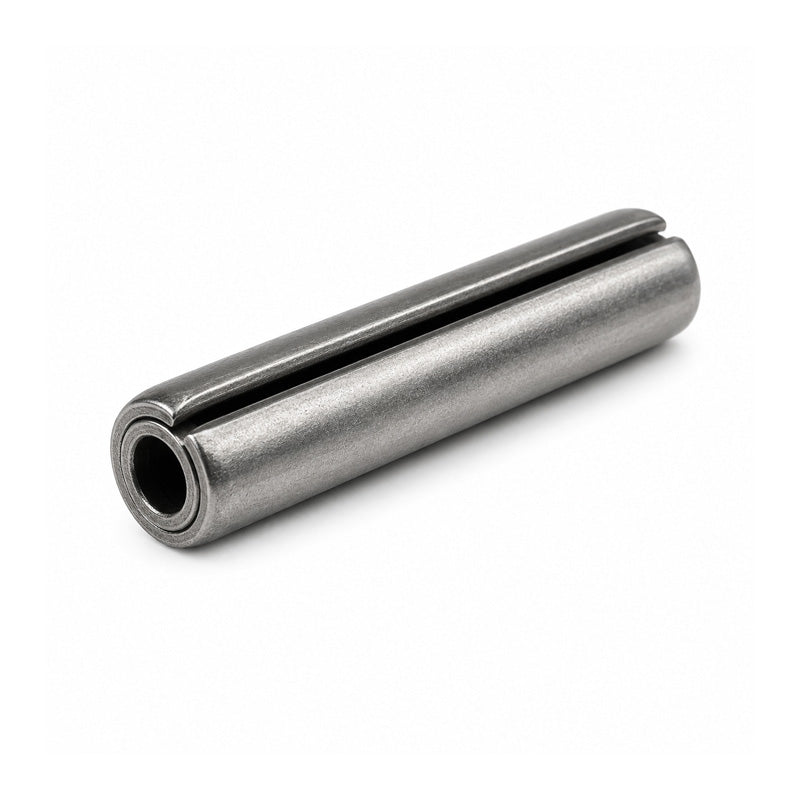

Metric Chrome Stainless Steel AISI 420 HCP Coiled Roll Pin 4x18mm with Pickled Finish - Allow 2-3 Days
In stock
Couldn't load pickup availability
Share this product
Description
Coiled Chrome Stainless Steel Roll Pins with Pickled Finish: These roll pins are manufactured from martensitic chrome stainless steel (DIN 7343 / AISI 420). Chrome stainless steel provides good corrosion resistance, excellent strength, and fatigue properties. The recommended service temperatures for chrome stainless steel pins is between -45 Deg C and 260 Deg C.
These pins are completed with a passivated (pickled) finish. The passivation process is the removal of surface contaminants such as embedded iron or iron particles. This process is essential when used in applications such as medical equipment or in the food industry.
Benefits: Excellent strength, good fatigue properties, wide temperature range
- Brand / Quality:
- Simply Coiled Roll Pins - High Quality
- Outside Diameter:
- 4mm
- Length:
- 18mm
- Material:
- Chrome Stainless Steel
- Grade:
- AISI 420
Technical
| Outside Diameter d1 | 4mm |
|---|---|
| Length L | 18mm |
| Length Tolerance | +/- 0.5mm |
| Chamfer Diameter B | 3.9mm (Approx) |
| Chamfer Length C | 1.1mm (Approx) |
| Material | Chrome Stainless Steel |
| Material Grade | AISI 420 |
| DIN / ISO | DIN7343 / ISO8750 |
| Finish | Pickled Finish |
| Weight per pin | 0.0018kg |
