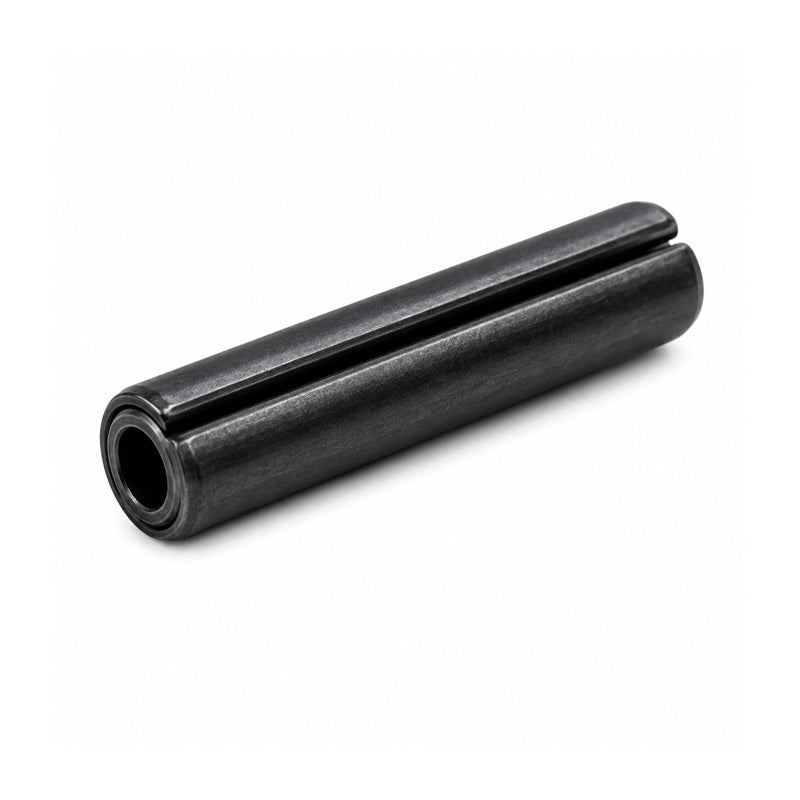

Imperial Carbon Steel CS70 MBK Coiled Roll Pin 3/16x7/8 inch with Plain Oiled Finish

Coiled Carbon Steel Roll Pins with Plain Oiled Finish: These roll pins are manufactured from high-grade carbon steel (DIN 1481 / CS70). High-carbon steel provides great shear strength and fatigue life. The recommended service temperatures for high-grade carbon steel pins is between -45 Deg C and 150 Deg C.
These pins are completed with a dry-to-the-touch plain oiled finish. The oil finish provides corrosion resistance, protecting the pins during storage and shipping. As the oil is a lubricant, it reduces friction between the coils and allows for easier insertion.

Benefits: High shear strength, good fatigue life, corrosion-resistant finish

Brand / Quality:

Simply Coiled Roll Pins - High Quality

Outside Diameter:

4.76mm = 0.187 (3/16) inch

Length:

22.23mm = 0.875 (7/8) inch

Material:

Carbon Steel

Grade:

CS70
