SKU: CRP.MCK.2X8MM

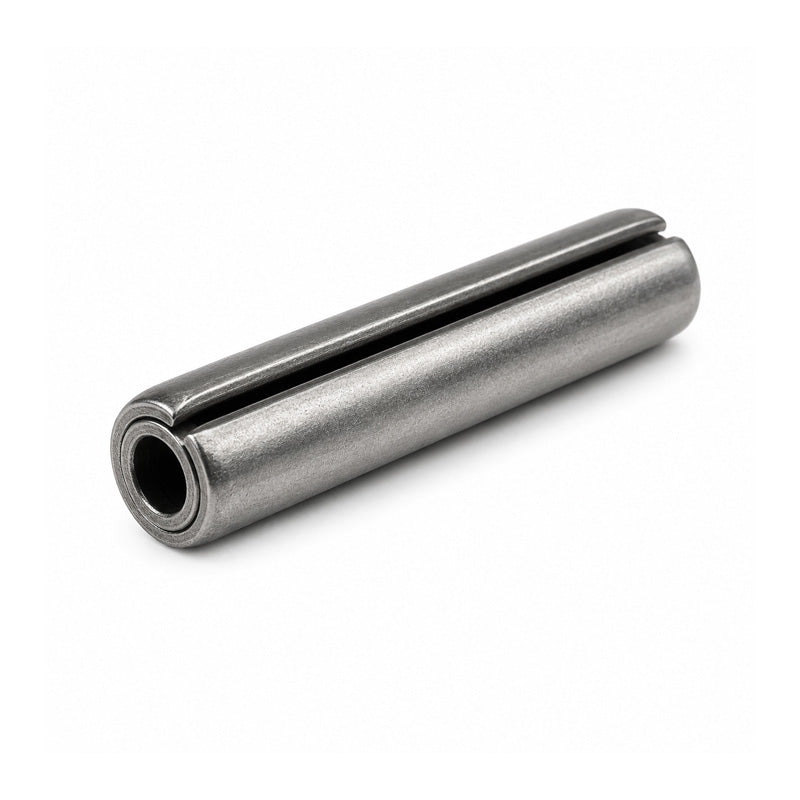

Metric Chrome Stainless Steel AISI 420 MCK Coiled Roll Pin 2x8mm with Plain Oiled Finish - Allow 2-3 Days
Metric Chrome Stainless Steel AISI 420 MCK Coiled Roll Pin 2x8mm with Plain Oiled Finish - Allow 2-3 Days
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Coiled Chrome Stainless Steel Roll Pins with Plain Oiled Finish: These roll pins are manufactured from martensitic chrome stainless steel (DIN 7343 / AISI 420). Chrome stainless steel provides good corrosion resistance, excellent strength, and fatigue properties. The recommended service temperatures for chrome stainless steel pins is between -45 Deg C and 260 Deg C.
These pins are completed with a dry-to-the-touch plain oiled finish. The oil finish provides corrosion resistance, protecting the pins during storage and shipping.
Benefits: Excellent strength, good fatigue properties, wide temperature range
- Brand / Quality:
- Simply Coiled Roll Pins - High Quality
- Outside Diameter:
- 2mm
- Length:
- 8mm
- Material:
- Chrome Stainless Steel
- Grade:
- AISI 420
Technical
Technical
| Outside Diameter d1 | 2mm |
|---|---|
| Length L | 8mm |
| Length Tolerance | +/- 0.25mm |
| Chamfer Diameter B | 1.9mm (Approx) |
| Chamfer Length C | 0.7mm (Approx) |
| Material | Chrome Stainless Steel |
| Material Grade | AISI 420 |
| DIN / ISO | DIN7343 / ISO8750 |
| Finish | Plain Oiled Finish |
| Weight per pin | 0.0002kg |
