SKU: CS19M14x1.5SSLH-CHI

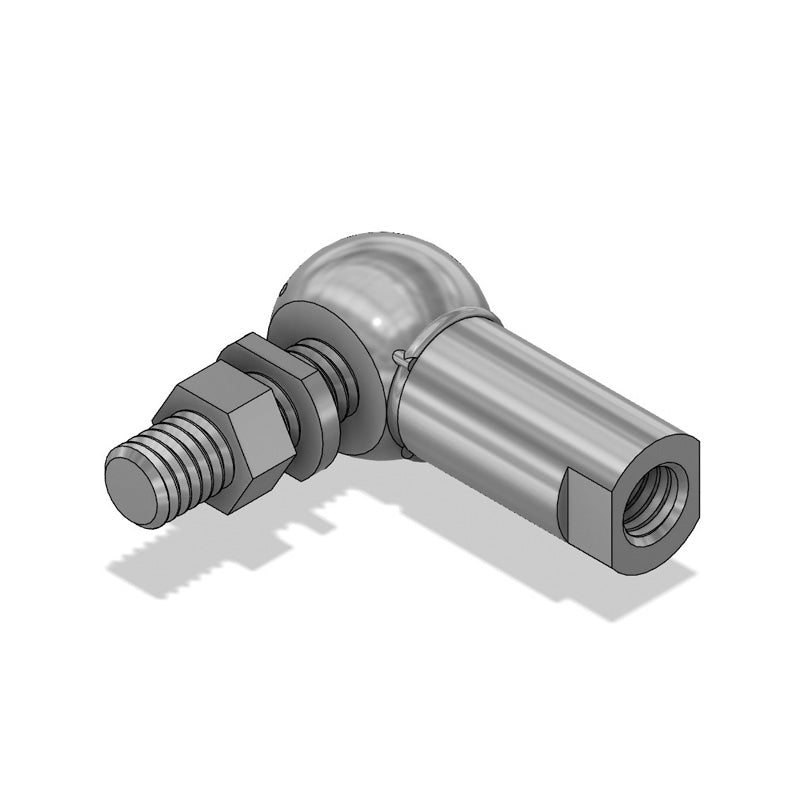

Chiavette CS19SS Left Hand Stainless Steel Ball Joint with Safety Clip 19mm Ball Diameter M14x1.5 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Chiavette Stainless Steel Ball Joints with Safety Clip: Ball joints are mechanical units for the connection of 2 parts which are perpendicular with respect to each other. They enable the transmission of alternating forces through angular and oscillating movements, at a moderate speed. Crafted from high-quality stainless steel, these ball joints are inherently resistant to corrosion, rust, and chemical damage, making them ideal for use in marine environments, chemical processing plants, and other corrosive settings. These types of ball joints feature external slots for the integrated safety clip that ensures secure attachment, preventing accidental disengagement or detachment of the ball stud during operation.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M14x1.5
- Thread Direction:
- Left Hand
- Outside Diameter:
- 19mm
- Style:
- Standard
- Type:
- With Safety Clip
Technical
| --- | Dimensions |
|---|---|
| Thread Direction | Left Hand |
| d1 | 19mm |
| d2 | M14x1.5 |
| a | 45mm (+/-0.3) |
| d3 | 22mm (+/-0.5) |
| d4 | 30mm (+/-0.5) |
| d6 | 19mm |
| e | 21.5mm |
| h2 | 0.5mm (+/-0.5) |
| l2 | 28mm (+/-0.3) |
| l3 | 20mm (+/-0.3) |
| r | 0.8mm |
| sw | 16mm |
| Angle | 15 deg |
| Weight | 0.221 kg |
