SKU: CSA.203

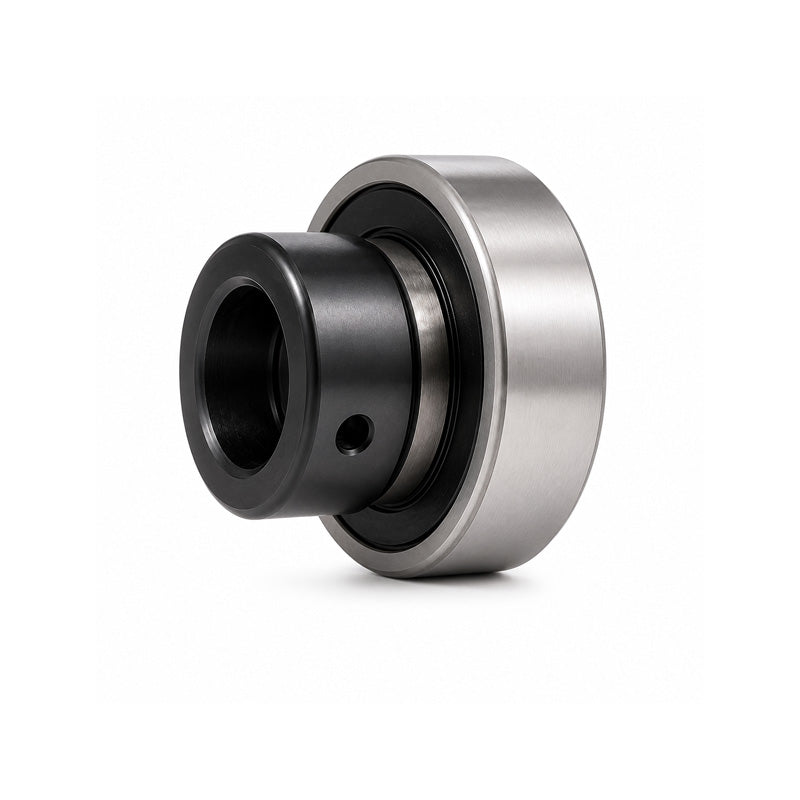

CSA203 Metric Bearing Insert with Locking Collar 17mm Bore 40mm Outside Dia
CSA203 Metric Bearing Insert with Locking Collar 17mm Bore 40mm Outside Dia
Regular price
$12.61
ex VAT
Regular price
Sale price
$12.61
ex VAT
In stock
Price Break
3+
$8.44
4+
$7.97
9+
$7.87
19+
$7.78
49+
$7.68
99+
$7.59
499+
$7.11
999+
$7.02
1999+
$6.92
2999+
$6.83
4999+
$6.64
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Style:
- CSA
Technical
Technical
| d | 17mm |
|---|---|
| Be | 12mm |
| D | 40mm |
| z | 19.1mm |
| n | 6mm |
| m | 13.1mm |
| Bi | 28.6mm |
| k | 28.6mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.6mm |
| Grub screw | M6X1.0 |
| Weight | 0.13 kg |
| Dynamic load | 960 kgf |
| Static load | 480 kgf |
