SKU: CSA.206-18

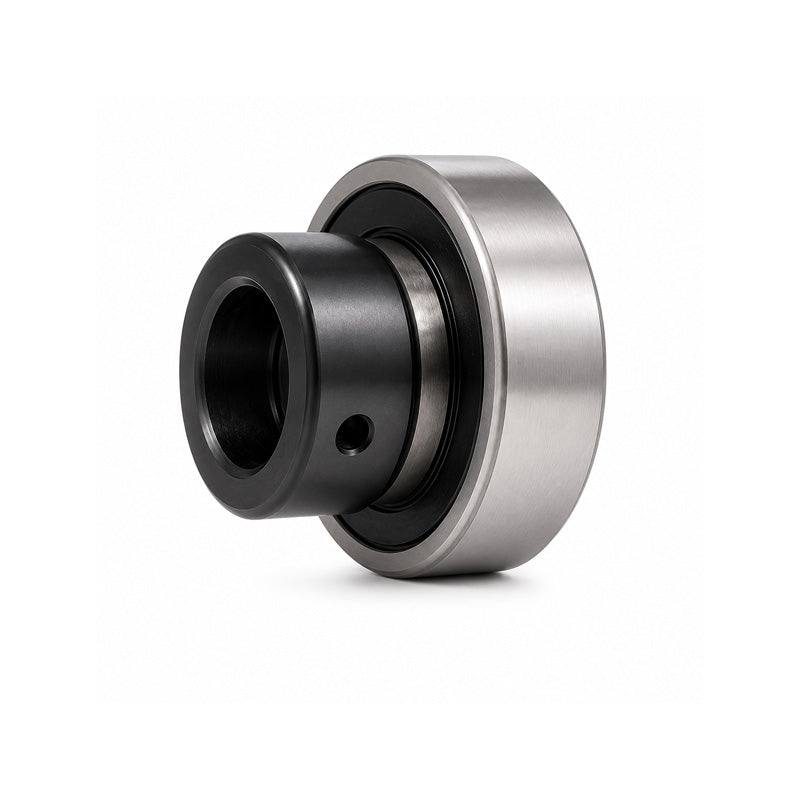

CSA206-18 Imperial Bearing Insert with Locking Collar 1-1/8 inch Bore 62mm Outside Dia
CSA206-18 Imperial Bearing Insert with Locking Collar 1-1/8 inch Bore 62mm Outside Dia
Regular price
$16.58
ex VAT
Regular price
Sale price
$16.58
ex VAT
In stock
Price Break
3+
$11.11
4+
$10.49
9+
$10.36
19+
$10.24
49+
$10.11
99+
$9.99
499+
$9.36
999+
$9.24
1999+
$9.11
2999+
$8.99
4999+
$8.74
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 62mm
- Style:
- CSA
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| Be | 16mm |
| D | 62mm |
| z | 23.8mm |
| n | 8mm |
| m | 15.8mm |
| Bi | 35.7mm |
| k | 44.5mm |
| H | 15.9mm |
| G | 6mm |
| h | 5mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
