SKU: CSA.207-20

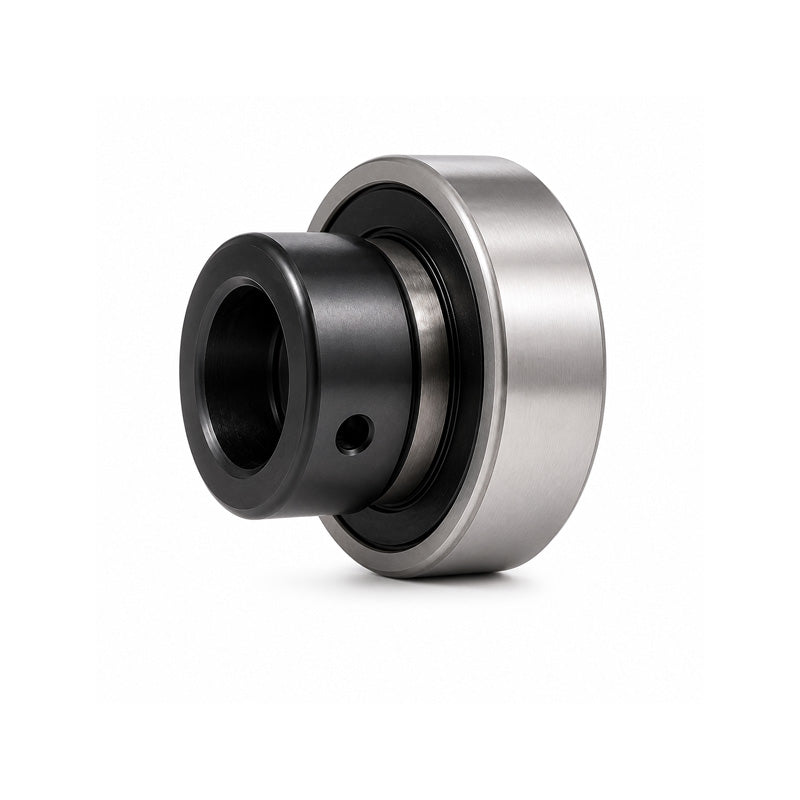

CSA207-20 Imperial Bearing Insert with Locking Collar 1-1/4 inch Bore 72mm Outside Dia
CSA207-20 Imperial Bearing Insert with Locking Collar 1-1/4 inch Bore 72mm Outside Dia
Regular price
$22.32
ex VAT
Regular price
Sale price
$22.32
ex VAT
In stock
Price Break
3+
$14.95
4+
$14.11
9+
$13.94
19+
$13.78
49+
$13.61
99+
$13.44
499+
$12.60
999+
$12.43
1999+
$12.26
2999+
$12.10
4999+
$11.76
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- CSA
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| Be | 17mm |
| D | 72mm |
| z | 25.4mm |
| n | 8.5mm |
| m | 16.9mm |
| Bi | 38.9mm |
| k | 55.6mm |
| H | 17.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.5 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
