SKU: CSA.211-35

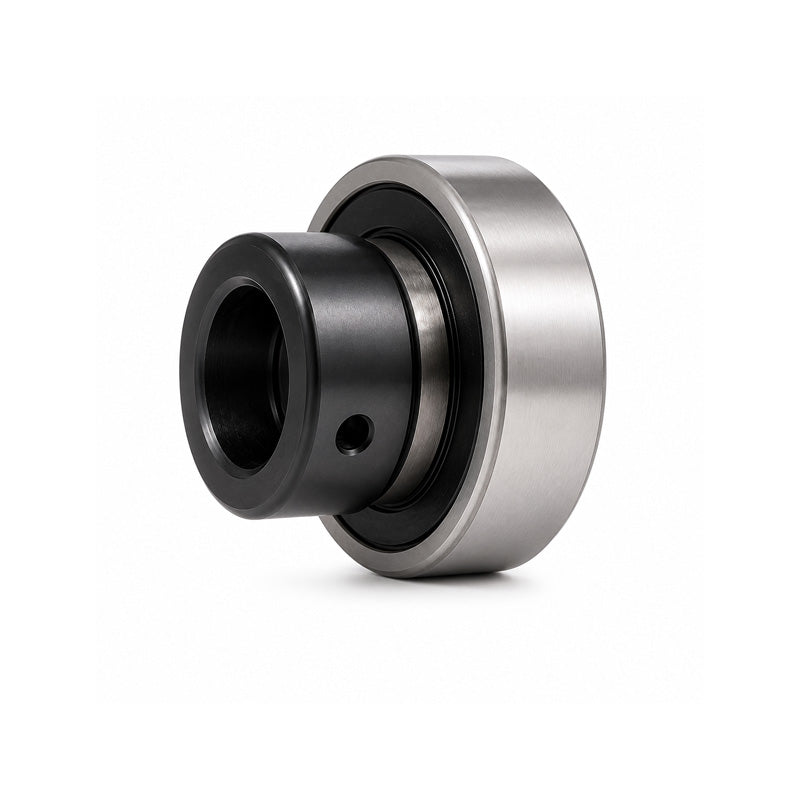

CSA211-35 Imperial Bearing Insert with Locking Collar 2-3/16 inch Bore 100mm Outside Dia
CSA211-35 Imperial Bearing Insert with Locking Collar 2-3/16 inch Bore 100mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 100mm
- Style:
- CSA
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| Be | 24mm |
| D | 100mm |
| z | 32.4mm |
| n | 12mm |
| m | 20.4mm |
| Bi | 48.4mm |
| k | 76.2mm |
| H | 20.7mm |
| G | 8mm |
| h | 7.2mm |
| Grub screw | 3/8"-24UNF |
| Weight | 0.87 kg |
| Dynamic load | 4400 kgf |
| Static load | 3000 kgf |
