SKU: CSA.212-38

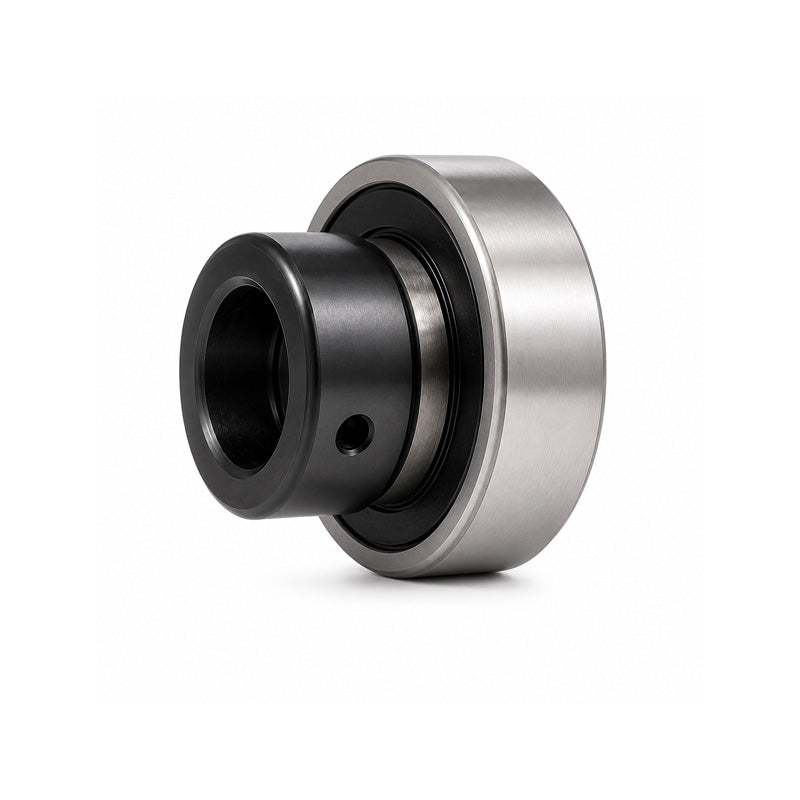

CSA212-38 Imperial Bearing Insert with Locking Collar 2-3/8 inch Bore 110mm Outside Dia
CSA212-38 Imperial Bearing Insert with Locking Collar 2-3/8 inch Bore 110mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Outside Diameter:
- 110mm
- Style:
- CSA
Technical
Technical
| d | 2-3/8 inch |
|---|---|
| Be | 24mm |
| D | 110mm |
| z | 33.4mm |
| n | 12mm |
| m | 21.4mm |
| Bi | 53.1mm |
| k | 84.2mm |
| H | 22.3mm |
| G | 8mm |
| h | 8mm |
| Grub screw | 3/8"-24UNF |
| Weight | 1.3 kg |
| Dynamic load | 4850 kgf |
| Static load | 2960 kgf |
