• CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
1 1

SKU: CSB.207-20

CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia

CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
$19.56 ex VAT
$19.56 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.10
4+ $12.36
9+ $12.22
19+ $12.07
49+ $11.92
99+ $11.77
499+ $11.04
999+ $10.89
1999+ $10.74
2999+ $10.60
4999+ $10.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

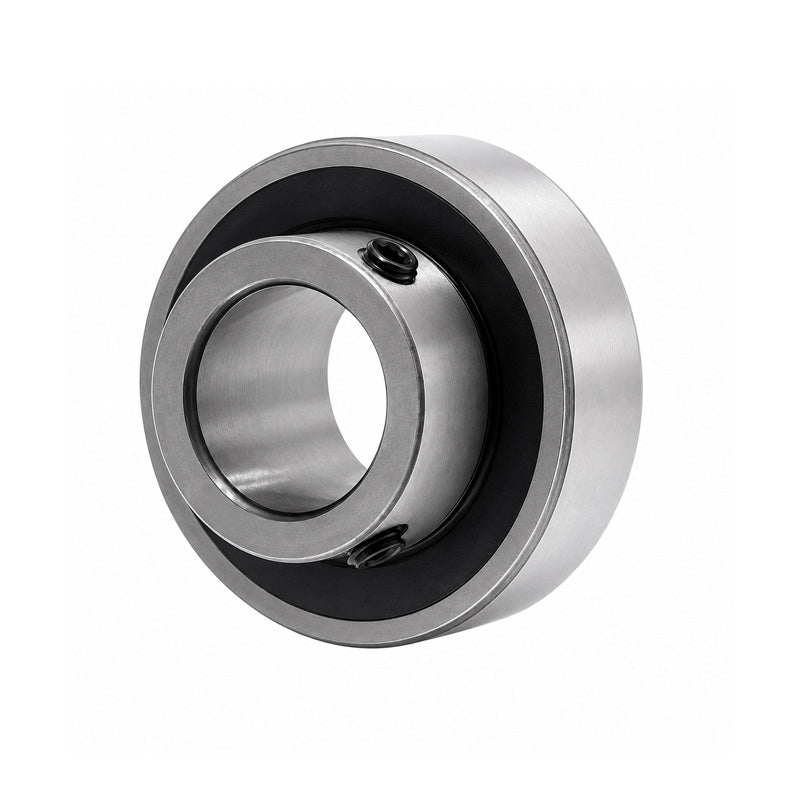

CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design, parallel outer

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
72mm
Style:
CSB
Technical
d 1-1/4 inch
Be 17mm
D 72mm
Bi 32mm
n 8.5mm
m 23.5mm
G 6.5mm
h 5.5mm
Grub screw 5/16-24 UNF
Weight 0.42 kg
Dynamic load 2010 kgf
Static load 1390 kgf
