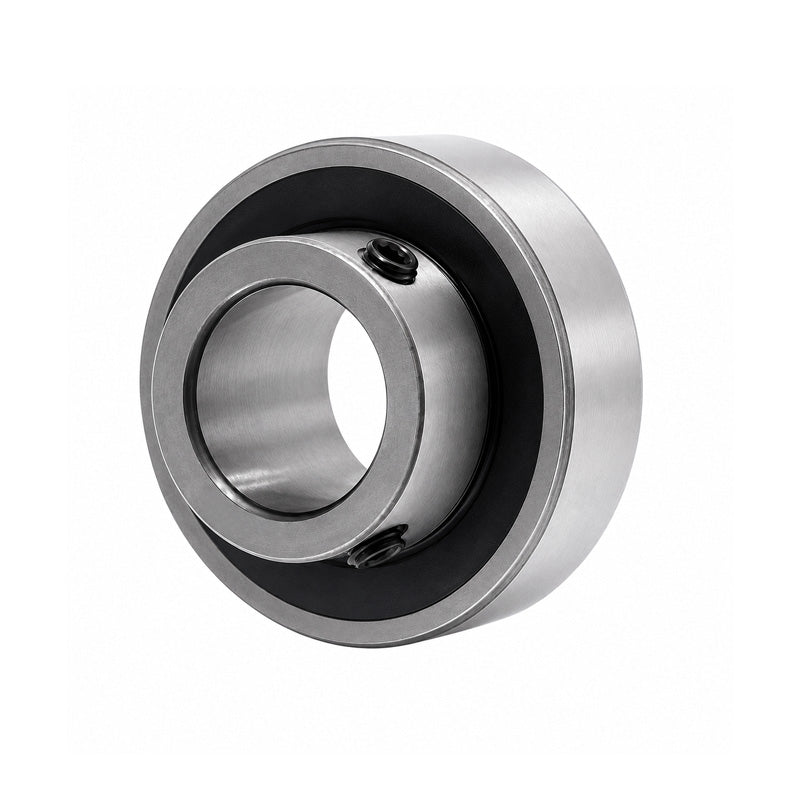

• CSB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
1 1

SKU: CSB.208-24

CSB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia

CSB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
$23.12 ex VAT
$23.12 ex VAT
Sale Sold out

In stock

Price Break
3+ $15.49
4+ $14.62
9+ $14.44
19+ $14.27
49+ $14.10
99+ $13.92
499+ $13.05
999+ $12.88
1999+ $12.70
2999+ $12.53
4999+ $12.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design, parallel outer

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
80mm
Style:
CSB
Technical
d 1-1/2 inch
Be 18mm
D 80mm
Bi 34mm
n 9mm
m 25mm
G 7mm
h 6mm
Grub screw 5/16-24 UNF
Weight 0.6 kg
Dynamic load 2560 kgf
Static load 1810 kgf
