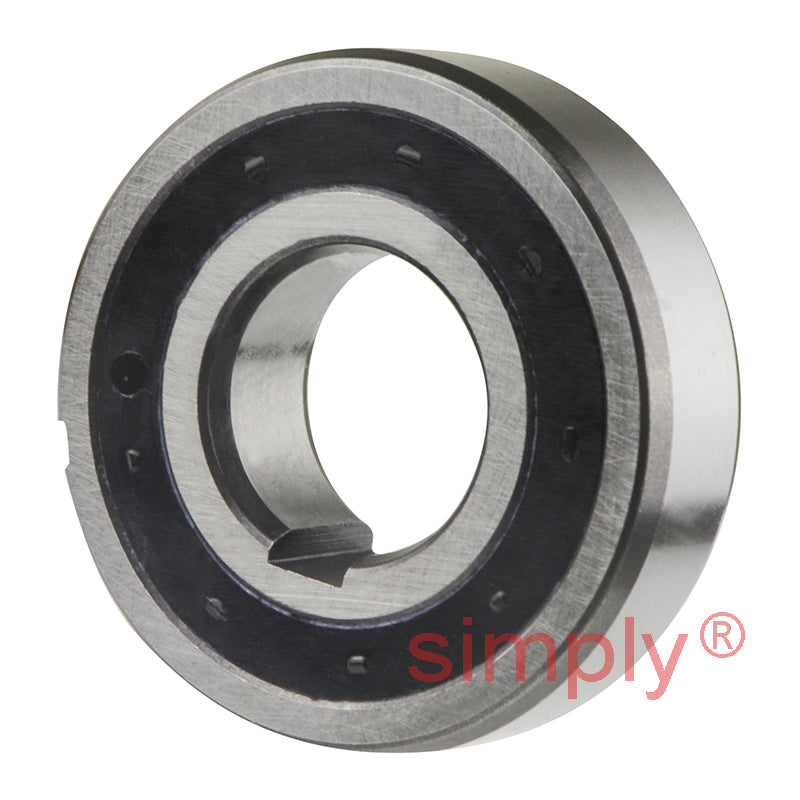

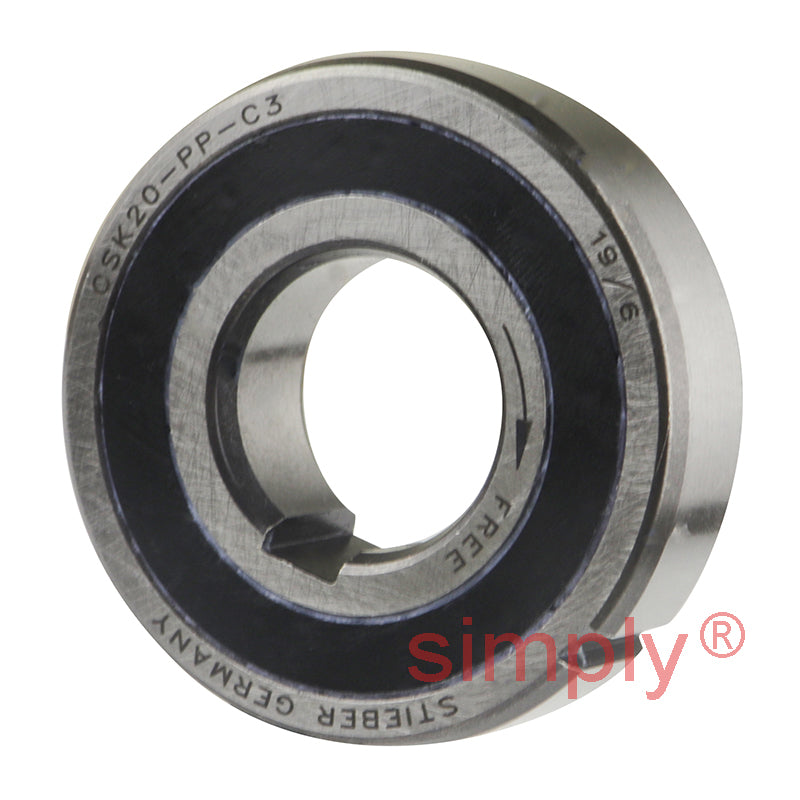

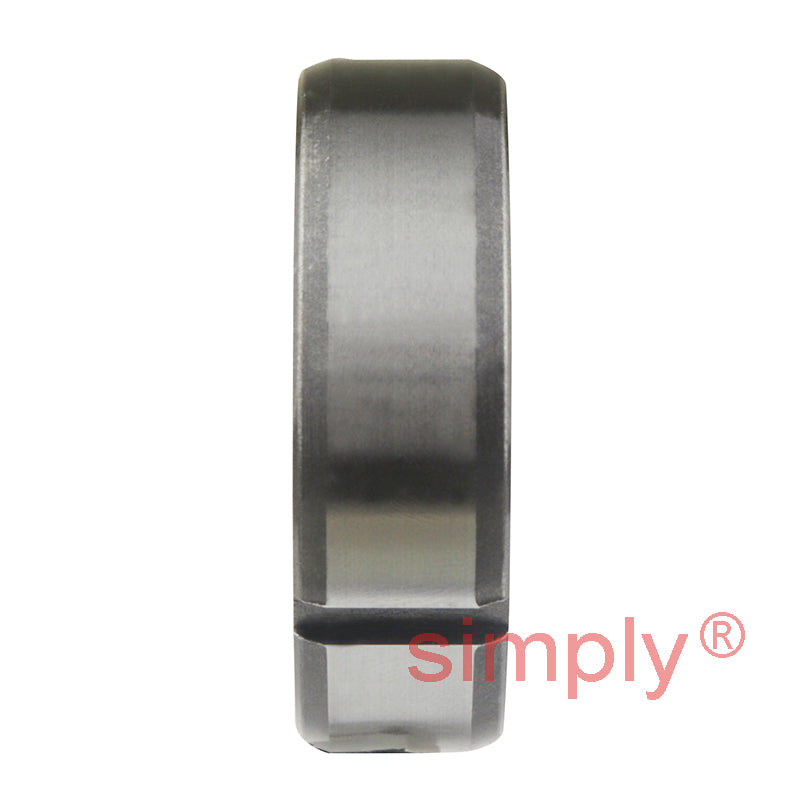

• Stieber CSK20PP 20mm Sprag Clutch One Way Bearing with Internal and External Keyways 20x47x14mm
  • Stieber CSK20PP 20mm Sprag Clutch One Way Bearing with Internal and External Keyways 20x47x14mm
  • Stieber CSK20PP 20mm Sprag Clutch One Way Bearing with Internal and External Keyways 20x47x14mm
  • Stieber
1 4

SKU: CSK.20PP.STB

Stieber CSK20PP 20mm Sprag Clutch One Way Bearing with Internal and External Keyways 20x47x14mm

Stieber CSK20PP 20mm Sprag Clutch One Way Bearing with Internal and External Keyways 20x47x14mm
$265.10 ex VAT
$265.10 ex VAT
Sale Sold out

In stock

Price Break
10+ $177.57
19+ $167.60
29+ $165.60
39+ $163.61
49+ $161.61
74+ $159.62
99+ $149.64
199+ $147.64
249+ $145.65
499+ $143.65
999+ $139.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Stieber - High Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
14mm
Technical
d 20mm
D 47mm
L 14mm
Torque Tkn 50 Nm
n max 6000 rpm
a min 6mm
k min 1.6mm
b min 3mm
t min 1.5mm
Dynamic load C 9.4 kN
Static load Co 4.46 kN
Weight 0.11 kg
Drag Torque Tr 1.3 Ncm
