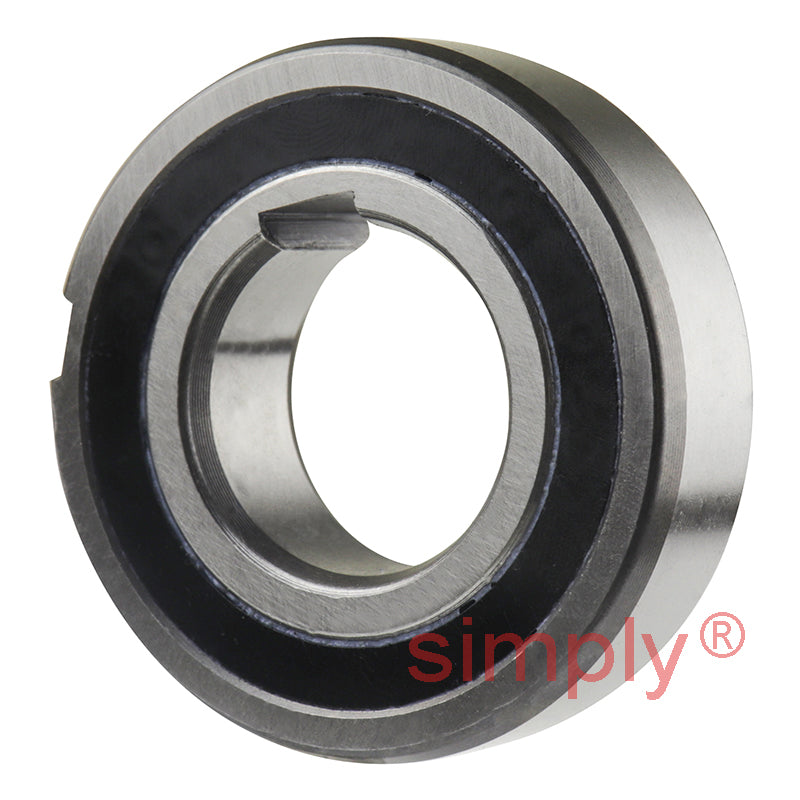

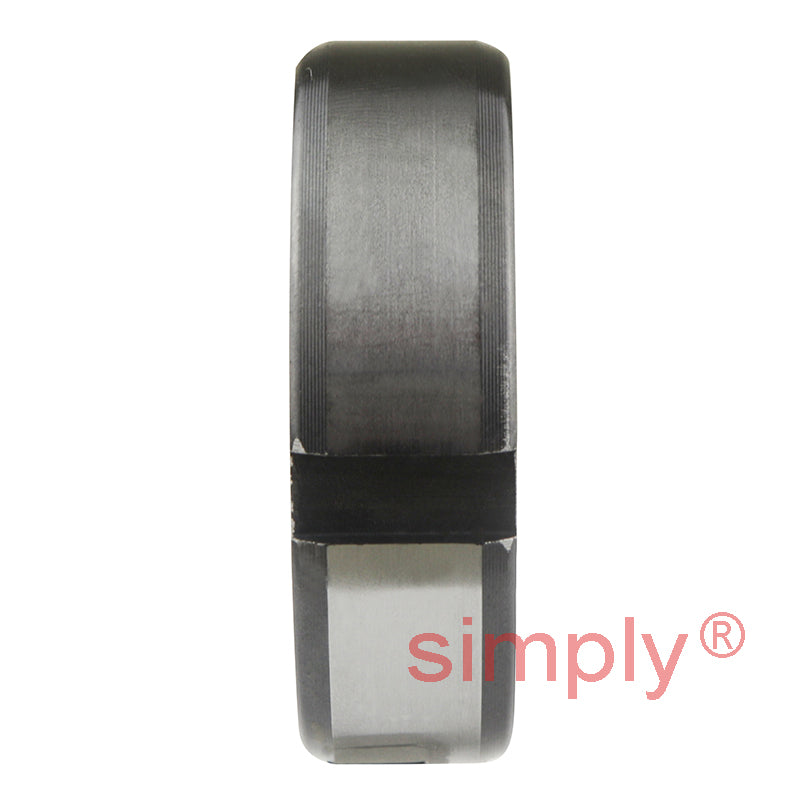

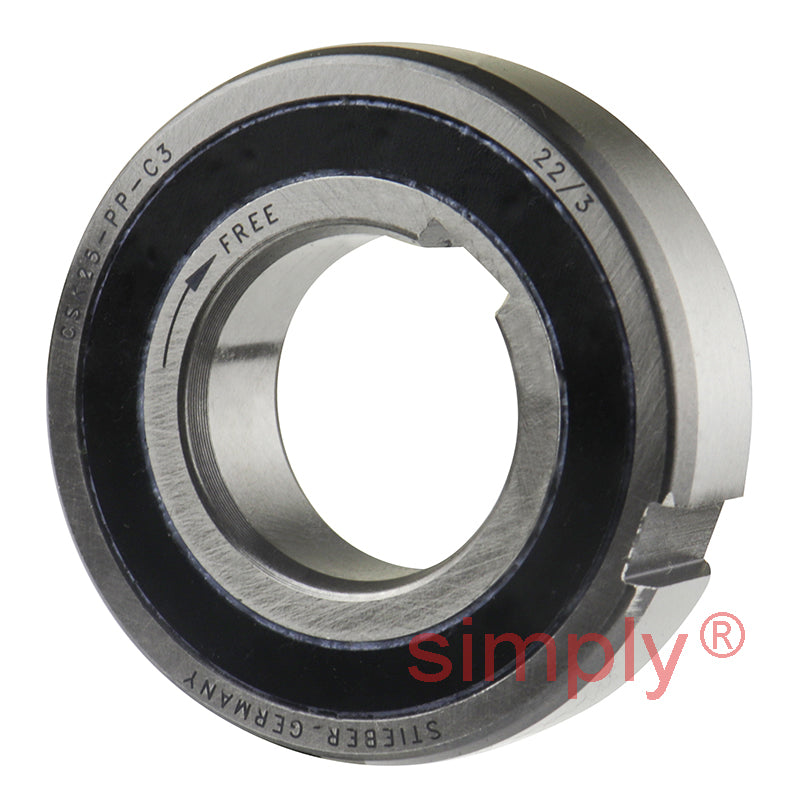

• Stieber CSK25PP 25mm Sprag Clutch One Way Bearing with Internal and External Keyways 25x52x15mm
  • Stieber CSK25PP 25mm Sprag Clutch One Way Bearing with Internal and External Keyways 25x52x15mm
  • Stieber CSK25PP 25mm Sprag Clutch One Way Bearing with Internal and External Keyways 25x52x15mm
  • Stieber
1 4

SKU: CSK.25PP.STB

Stieber CSK25PP 25mm Sprag Clutch One Way Bearing with Internal and External Keyways 25x52x15mm

Stieber CSK25PP 25mm Sprag Clutch One Way Bearing with Internal and External Keyways 25x52x15mm
$197.47 ex VAT
$197.47 ex VAT
Sale Sold out

In stock

Price Break
10+ $132.27
19+ $124.84
29+ $123.36
39+ $121.87
49+ $120.38
74+ $118.90
99+ $111.47
199+ $109.98
249+ $108.49
499+ $107.01
999+ $104.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Stieber - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
15mm
Technical
d 25mm
D 52mm
L 15mm
Torque Tkn 85 Nm
n max 5200 rpm
a min 8mm
k min 2.5mm
b min 6mm
t min 1.8mm
Dynamic load C 10.7 kN
Static load Co 5.46 kN
Weight 0.14 kg
Drag Torque Tr 2 Ncm
