SKU: CSK.30.STB

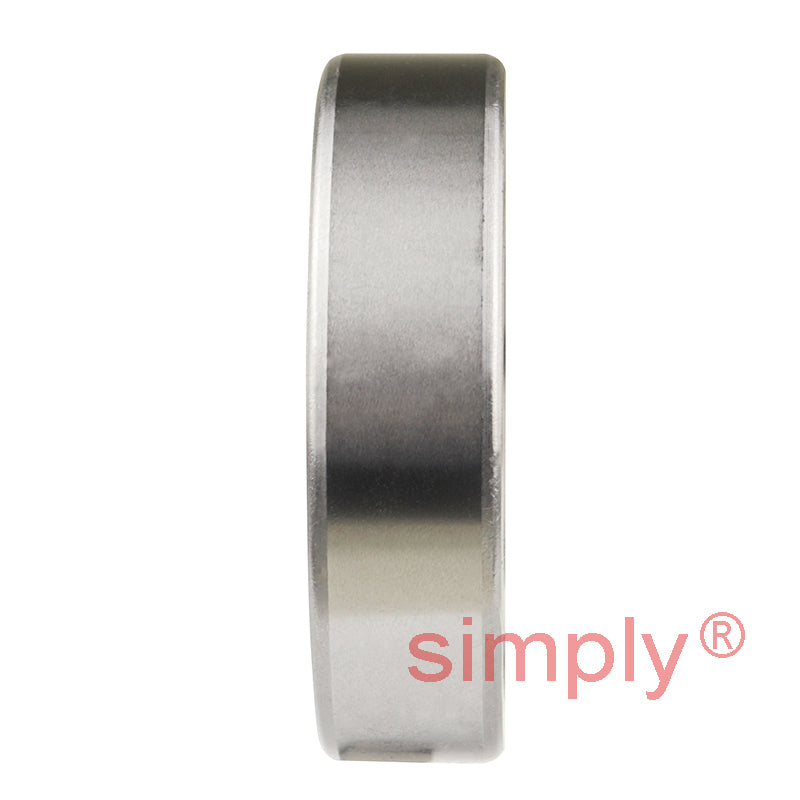

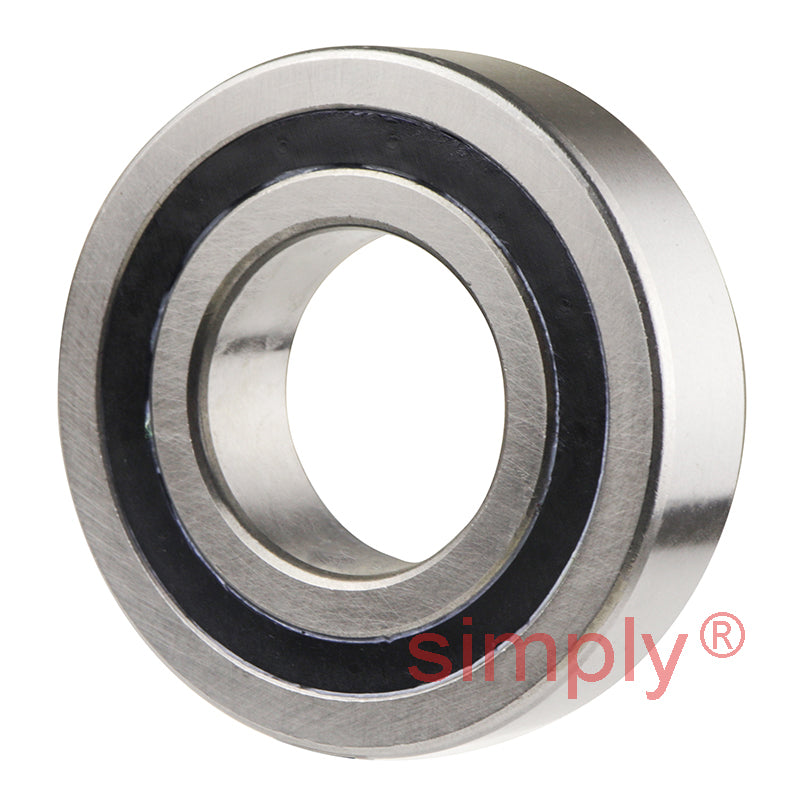

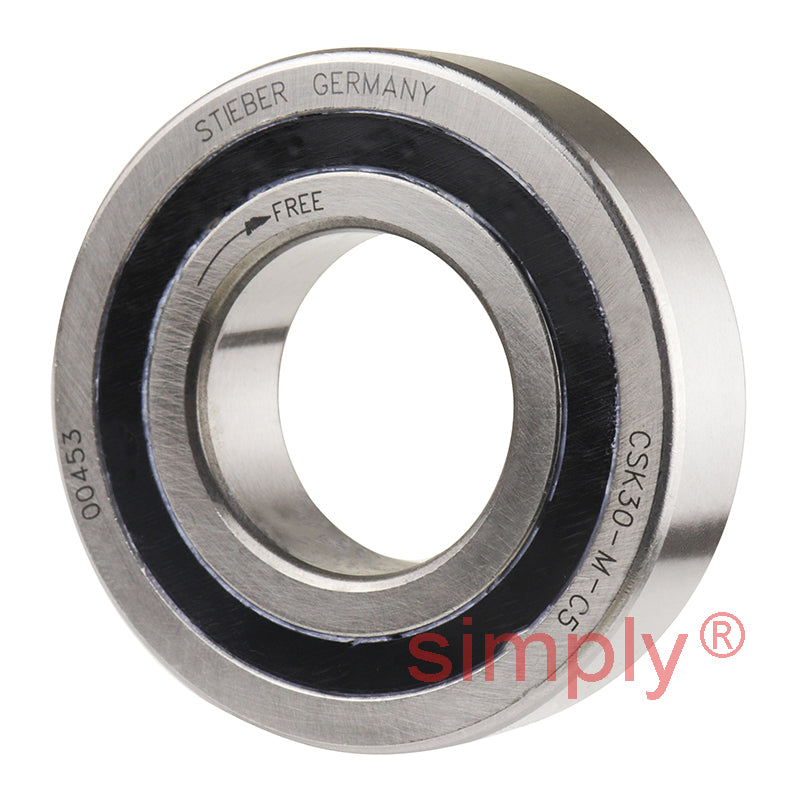

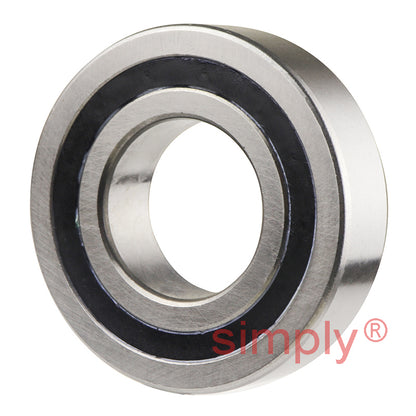

Stieber CSK30 30mm Sprag Clutch One Way Bearing Without Keyways 30x62x16mm

Stieber CSK30 30mm Sprag Clutch One Way Bearing Without Keyways 30x62x16mm
$112.09 ex VAT
$112.09 ex VAT
Sale Sold out

In stock

Price Break
10+ $75.08
19+ $70.87
29+ $70.02
39+ $69.18
49+ $68.33
74+ $67.49
99+ $63.27
199+ $62.43
249+ $61.59
499+ $60.74
999+ $59.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto a shaft. The tolerance for the housing fit is N6 and the tolerance for the shaft is n6. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C
Benefits: Cost effective replacement clutch bearing, low maintenance
Brand / Quality:
Stieber - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Technical
d 30mm
D 62mm
L 16mm
Torque Tkn 130 Nm
n max 4200 rpm
Dynamic load C 11.7 kN
Static load Co 6.45 kN
Weight 0.21 kg
Drag Torque Tr 4.4 Ncm
