• Stieber CSK40PP 40mm Sprag Clutch One Way Bearing with Internal and External Keyways 40x80x22mm
  • Stieber CSK40PP 40mm Sprag Clutch One Way Bearing with Internal and External Keyways 40x80x22mm
  • Stieber CSK40PP 40mm Sprag Clutch One Way Bearing with Internal and External Keyways 40x80x22mm
  • Stieber
1 4

SKU: CSK.40PP.STB

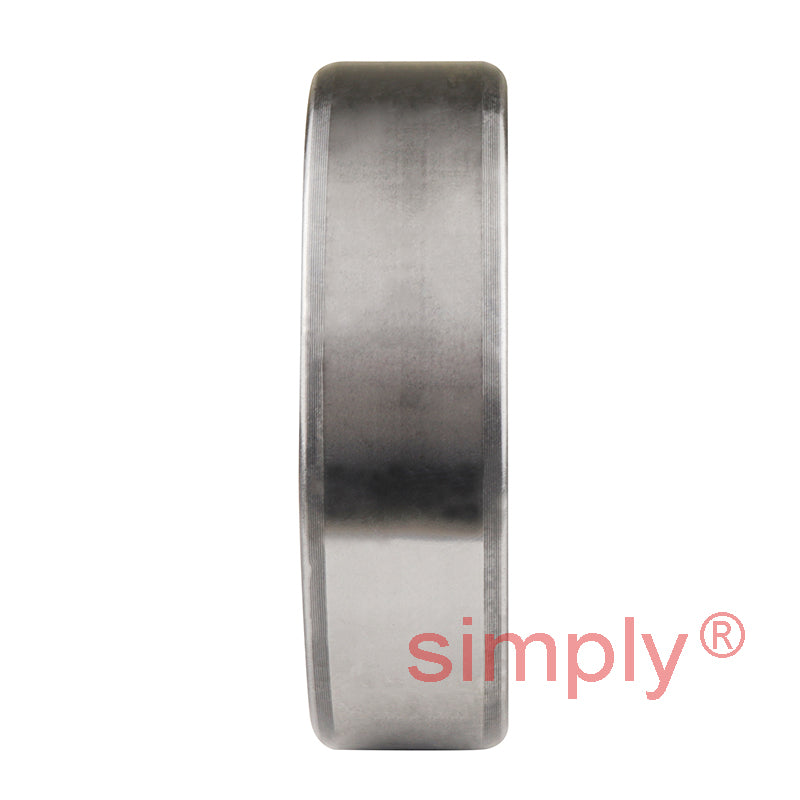

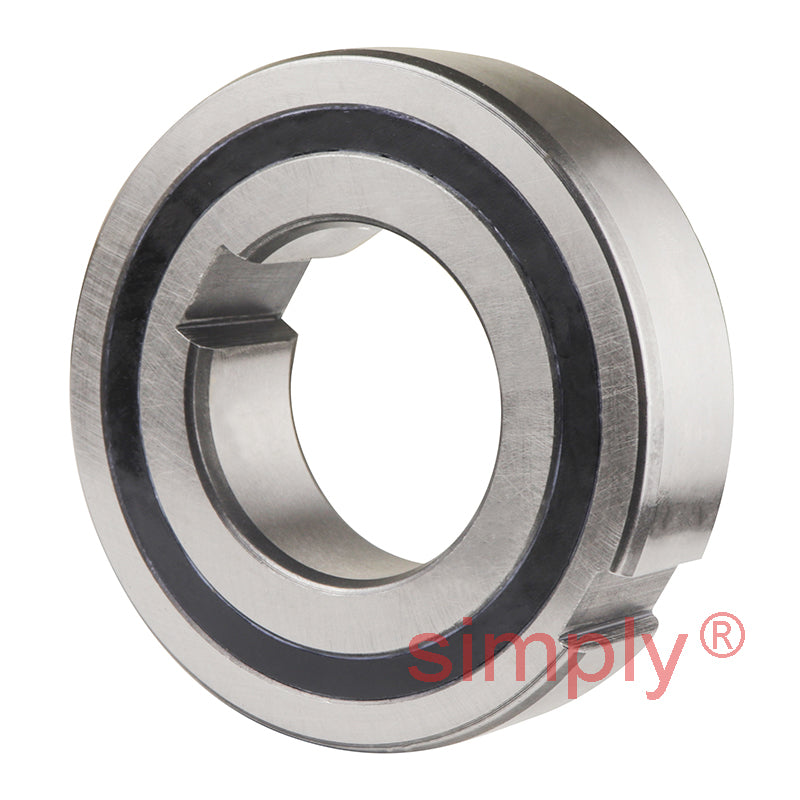

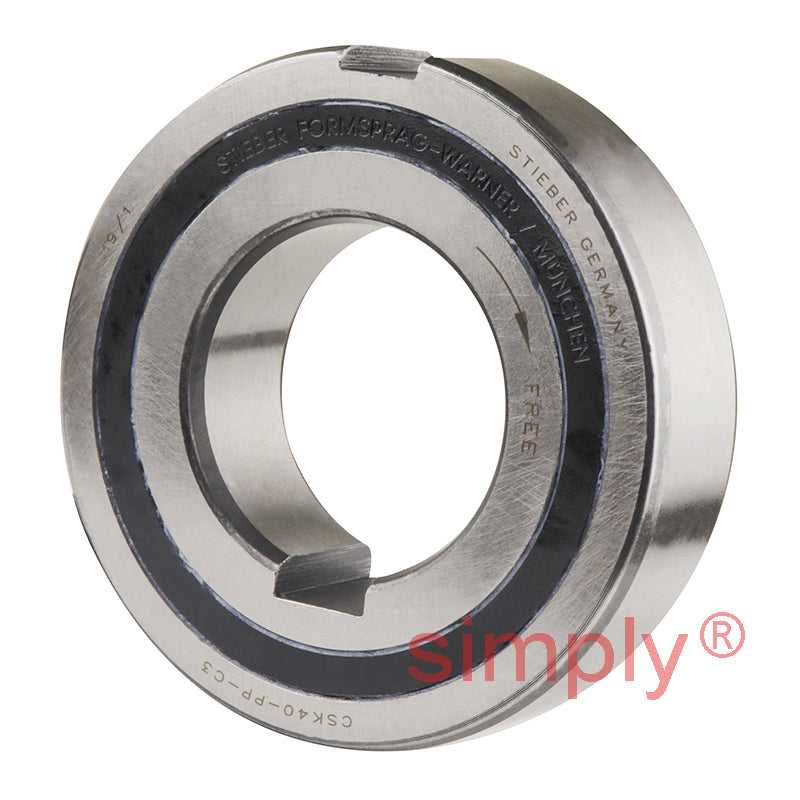

Stieber CSK40PP 40mm Sprag Clutch One Way Bearing with Internal and External Keyways 40x80x22mm

Stieber CSK40PP 40mm Sprag Clutch One Way Bearing with Internal and External Keyways 40x80x22mm
$360.04 ex VAT
$360.04 ex VAT
Sale Sold out

Equivalent to: CSK.40PP.C3,CSK40PPC3

In stock

Price Break
10+ $241.17
19+ $227.62
29+ $224.91
39+ $222.20
49+ $219.49
74+ $216.78
99+ $203.23
199+ $200.52
249+ $197.81
499+ $195.10
999+ $189.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Stieber - High Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Width:
22mm
Technical
d 40mm
D 80mm
L 22mm
Torque Tkn 325 Nm
n max 3000 rpm
a min 12mm
k min 4mm
b min 10mm
t min 2.7mm
Dynamic load C 15.54 kN
Static load Co 12.25 kN
Weight 0.5 kg
Drag Torque Tr 7 Ncm
