SKU: CUC205-14-SNR

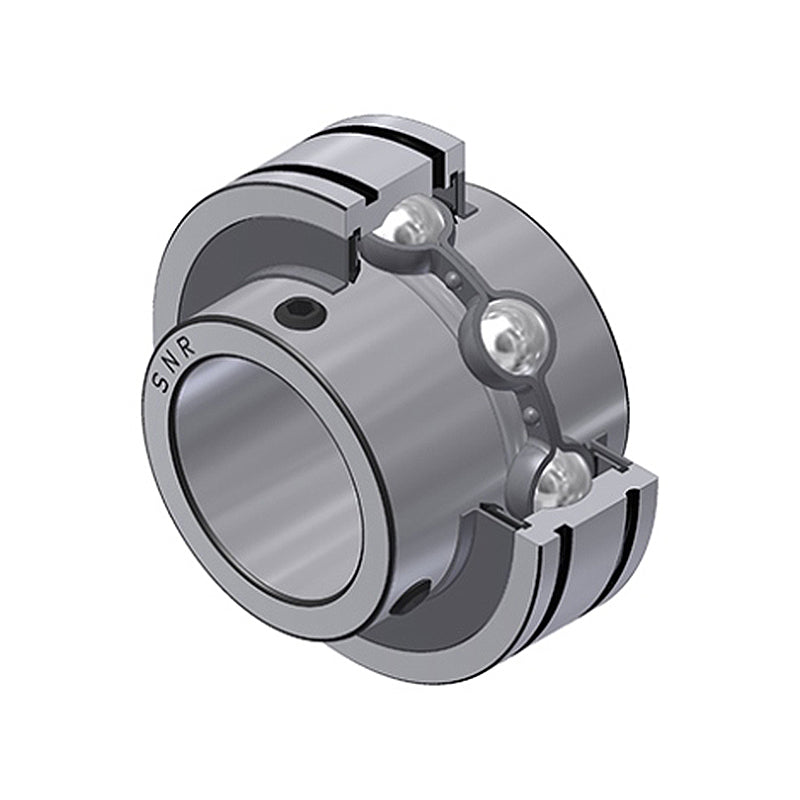

SNR CUC205-14 Imperial Full Width Grooved Parallel Outer Bearing Insert 7/8 inch Bore 52mm Outside Diameter with Grub Screws - Allow 2-3 Days
SNR CUC205-14 Imperial Full Width Grooved Parallel Outer Bearing Insert 7/8 inch Bore 52mm Outside Diameter with Grub Screws - Allow 2-3 Days
Regular price
$20.60
ex VAT
Regular price
Sale price
$20.60
ex VAT
In stock
Price Break
3+
$15.35
5+
$14.73
9+
$14.42
19+
$13.95
49+
$13.64
74+
$12.87
99+
$10.85
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
SNR CUC Full Width Parallel Outer Bearing Insert with Grub Screws: This bearing insert is tailored for applications requiring axial fixation and lubrication capabilities, not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and lubrication hole. Each steel insert is equipped with a single lip seal and slinger on both sides, featuring a wide inner ring design for enhanced stability and performance.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 1/4-28UNF
- Inside Diameter:
- 22.225mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Width:
- 34mm
- Style:
- CUC
Technical
Technical
| d | 7/8 inch |
|---|---|
| d | 22.225mm |
| D | 52mm |
| C | 17mm |
| B | 34mm |
| S | 14.3mm |
| a | 3.2mm |
| b | 1.35mm |
| N1 | 49.73mm |
| m | 5mm |
| C1 | 4mm |
| r min | 0.6mm |
| G | 1/4-28UNF |
| Wrench Size | 1/8 inch |
| Set screw torque | 3.7 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 14kN |
| Static load rating C0 | 7.9kN |
| Weight | 0.2kg |
